New model Von Roll Skyway being built. Carlsbad California

VONROLLVR101

Großer Müggelberg (115m)
Registriert
09. Dez. 2017
Beiträge
217
Reaktionspunkte
91
Here are some technical specifications.
95 feet long.
52 cabin capacity
Top height 12 feet above the ground.
Counterweight 26 lbs.
Tallest tower 8 feet.
Built from Steel, stainless steel, Aircraft Aluminium 6061,hardened tool steel
Cnc machiened.
Tolerance of .005 on all parts.
Concrete foundation for 8 foot tower 3 feet deep 3 feet wide with rebar reinforced.
Each cabin can carry 1 lbs of weight.
Cable imported from Switzerland .098 diameter or 2.5 mm.


Anhänge

  • 20180904_181113.jpg
    701,6 KB · Aufrufe: 10.454
  • 20180903_153230.jpg
    1.013 KB · Aufrufe: 10.455
  • 20180912_182652.jpg
    843,4 KB · Aufrufe: 10.455
  • 20181118_145519.jpg
    643,7 KB · Aufrufe: 10.453
  • 20190120_155403.jpg
    762,1 KB · Aufrufe: 10.456
  • 20190123_182359.jpg
    715,5 KB · Aufrufe: 10.455
  • 20190129_180528.jpg
    466,4 KB · Aufrufe: 10.456
  • 20190125_165014.jpg
    789 KB · Aufrufe: 10.450
  • 20190131_182746.jpg
    920,1 KB · Aufrufe: 10.455

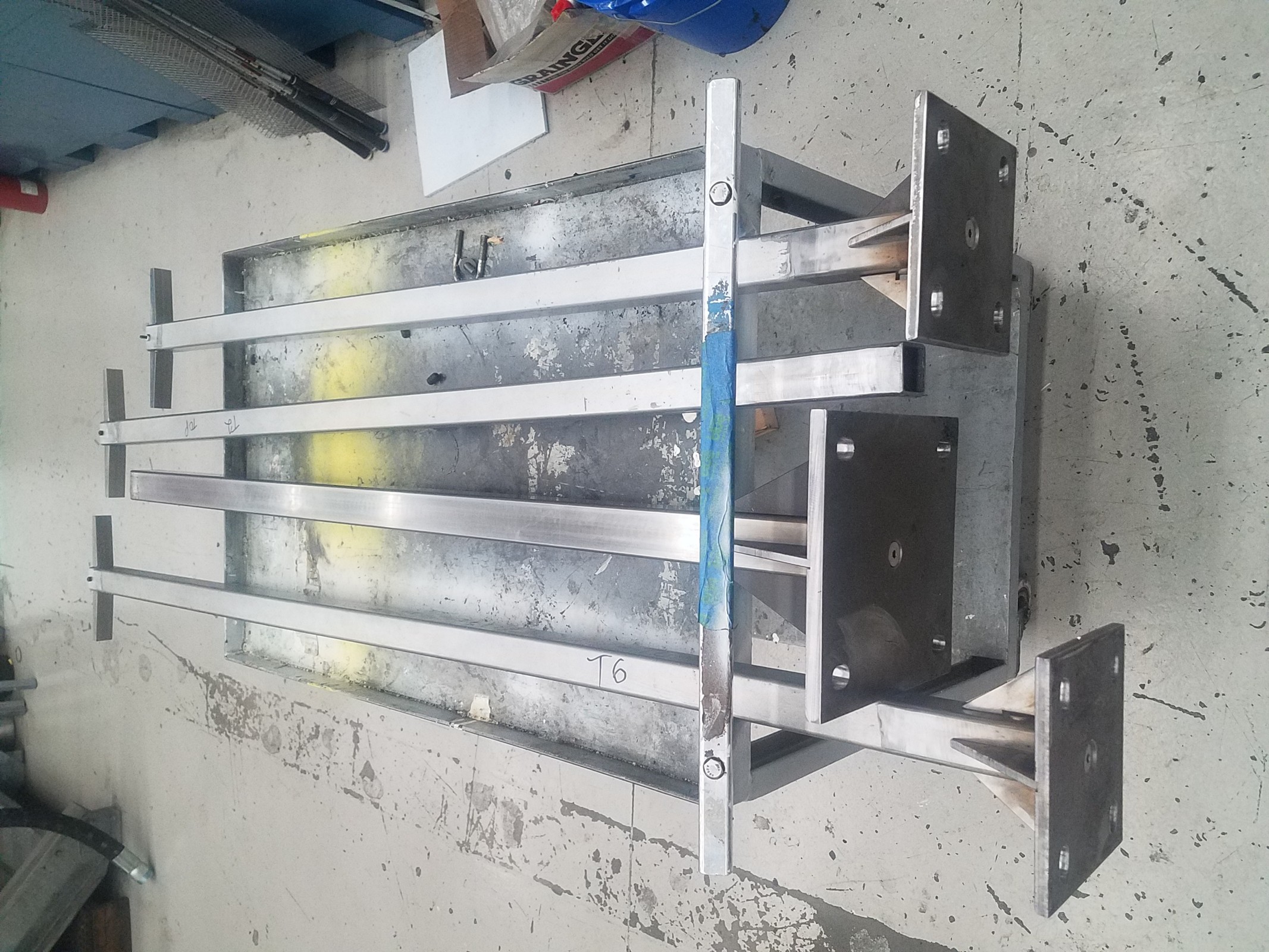

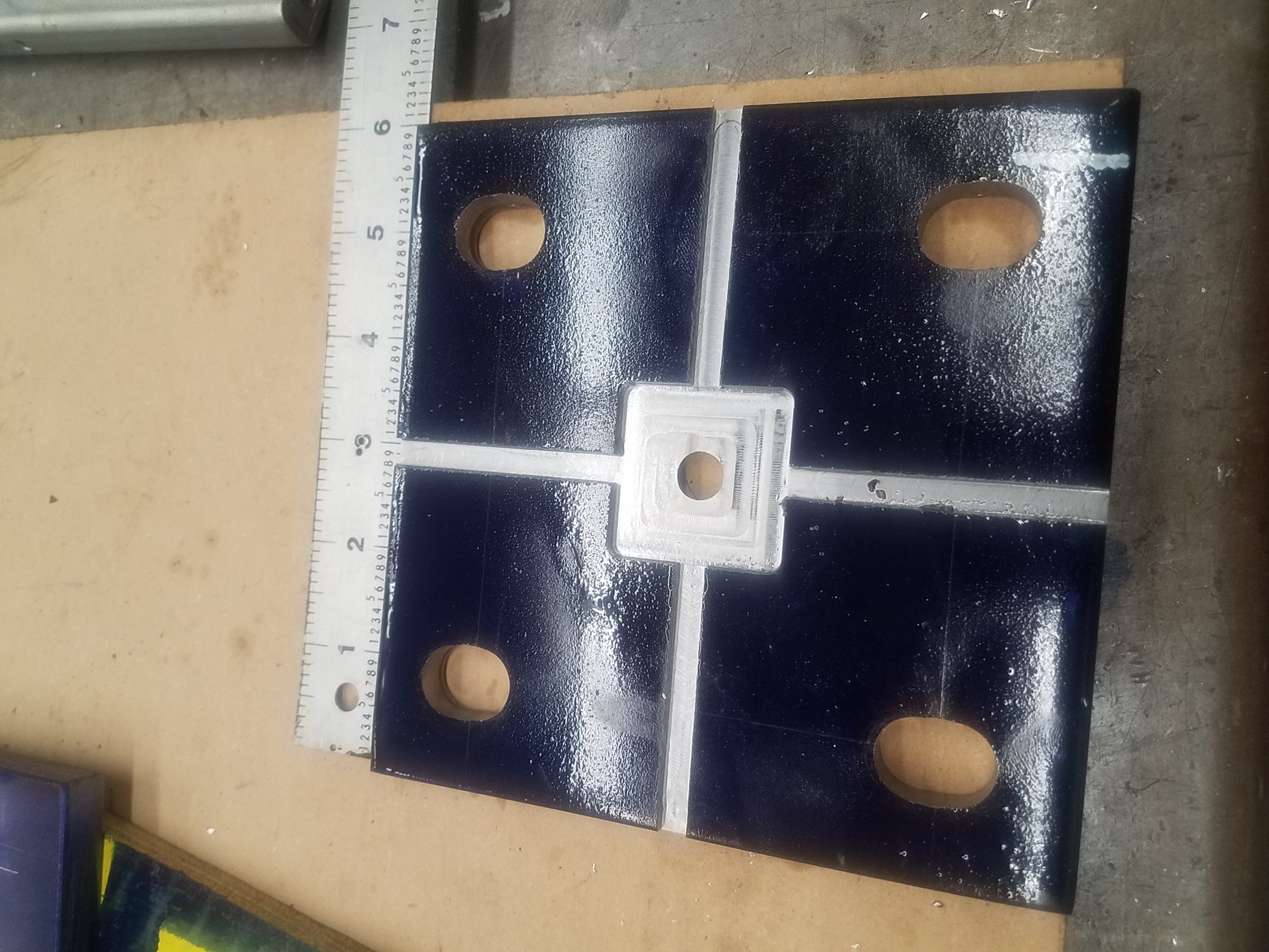

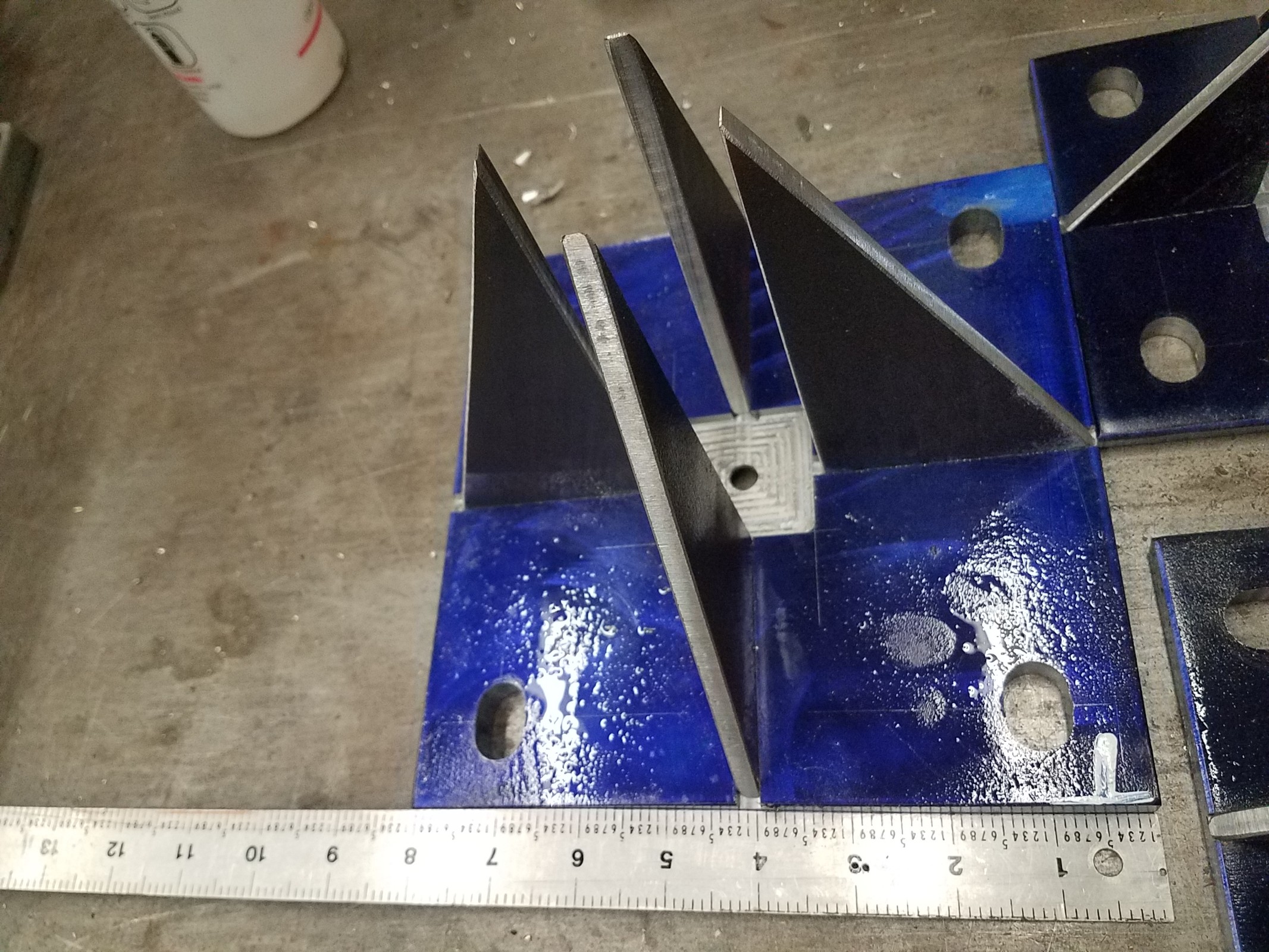

  • Towers off to be welded.
    756,1 KB · Aufrufe: 10.456

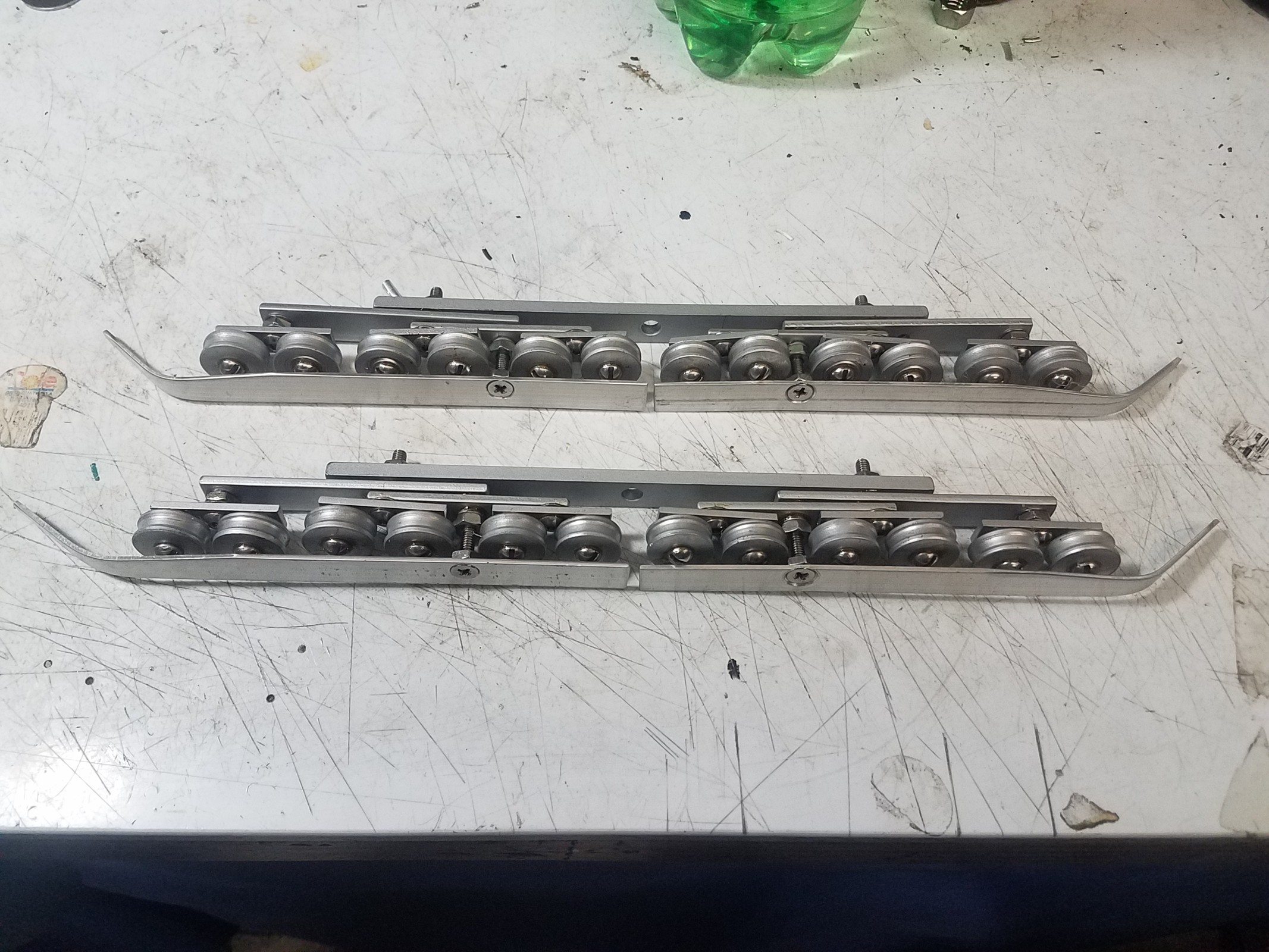

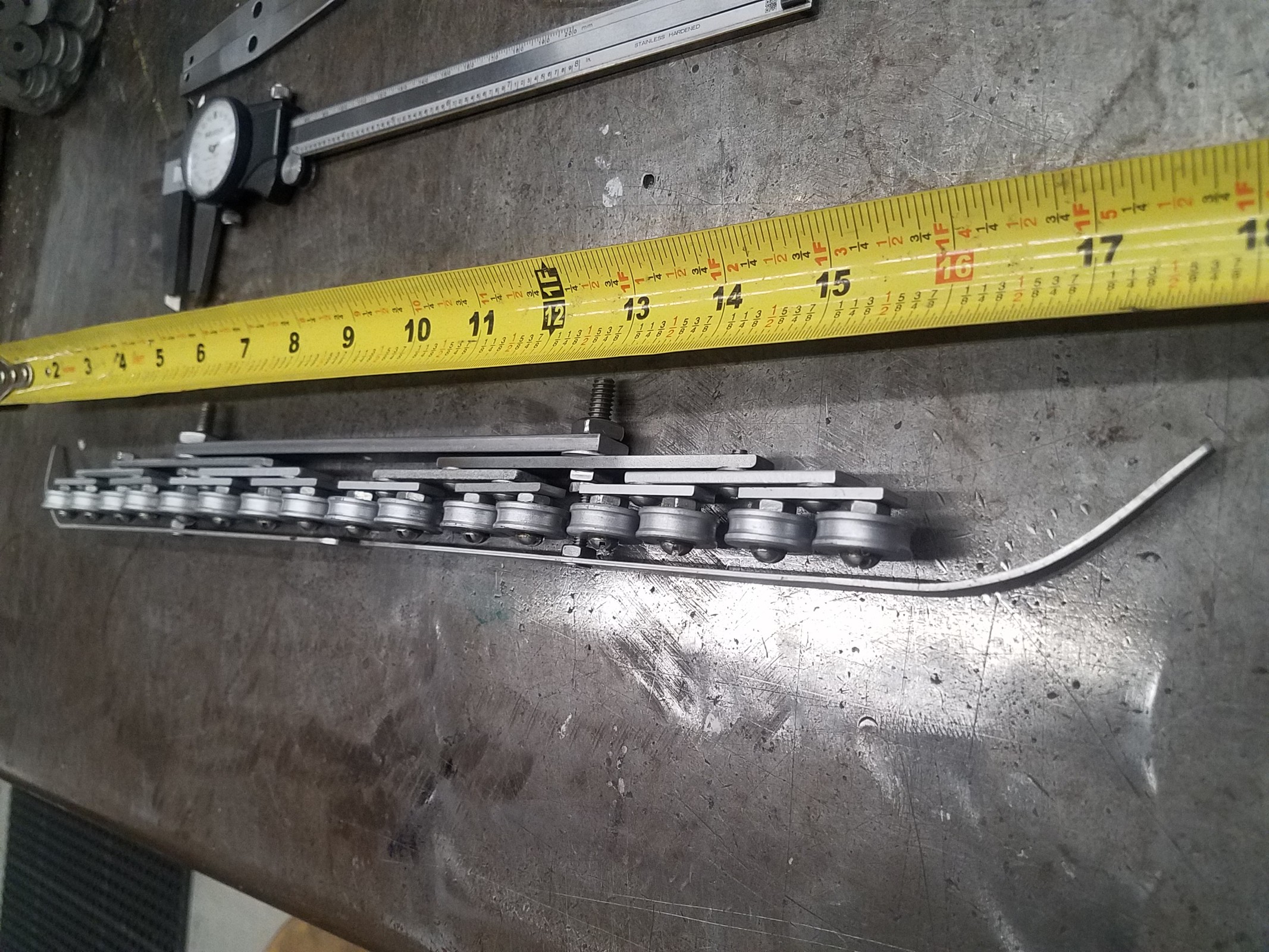

12 sheave tower batterys.. Made from A2 tool steel. Sheaves are UV resistant delrin. All cnc machiened. Built to last a lifetime. Each arm on the tower batterys are tapped and hardened.


Anhänge

  • 20190214_174655.jpg
    696,5 KB · Aufrufe: 10.324
  • 20190214_174642.jpg
    636,2 KB · Aufrufe: 10.325
  • 20190214_174603.jpg
    674 KB · Aufrufe: 10.331
  • 20190213_154519.jpg
    640,4 KB · Aufrufe: 10.323
Is the bullwhell a special part, or is the a common part for general pupose?

The bullwheel is a congress 10 in sheave..You can find them on ebay or Granger..

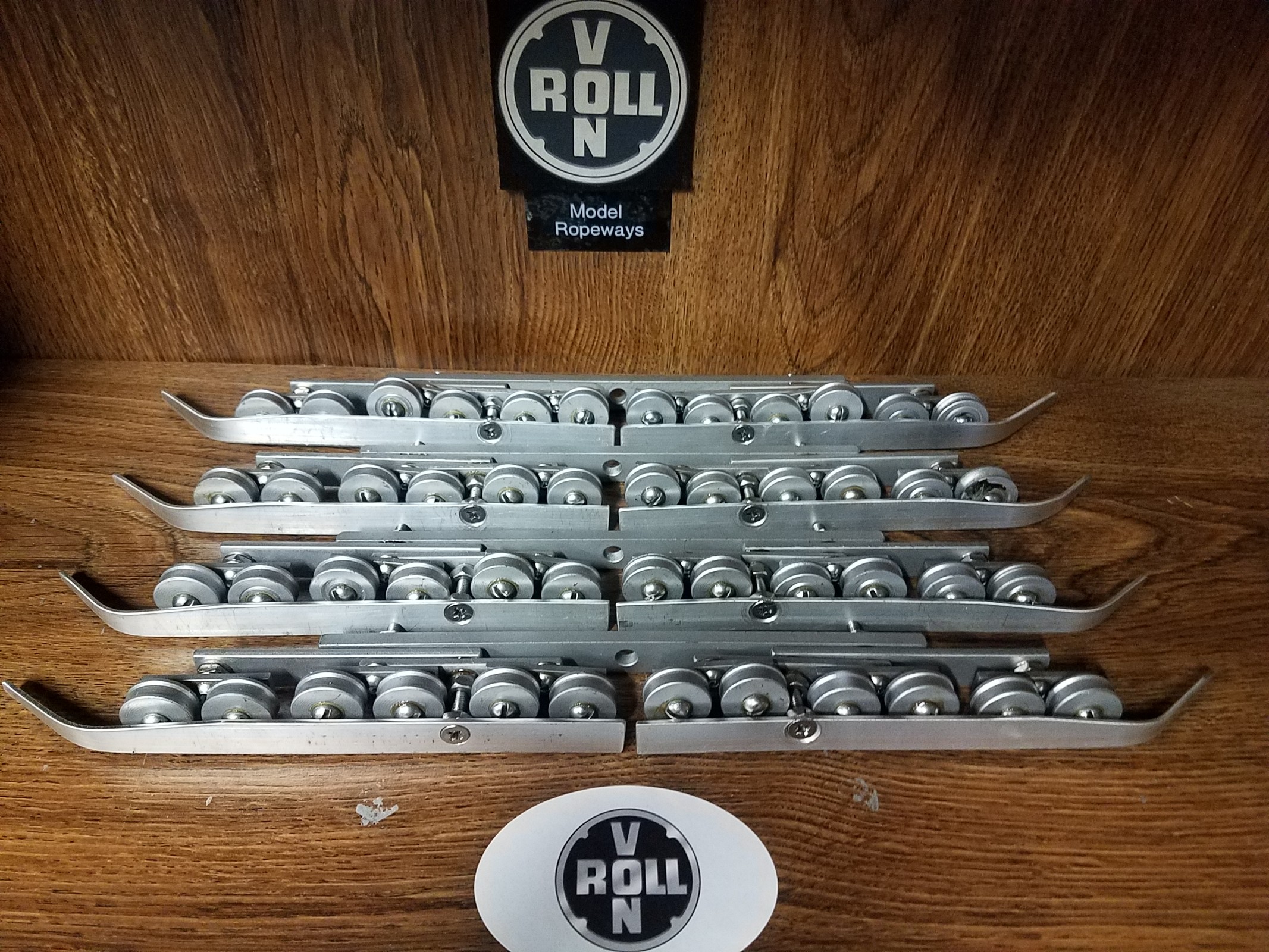

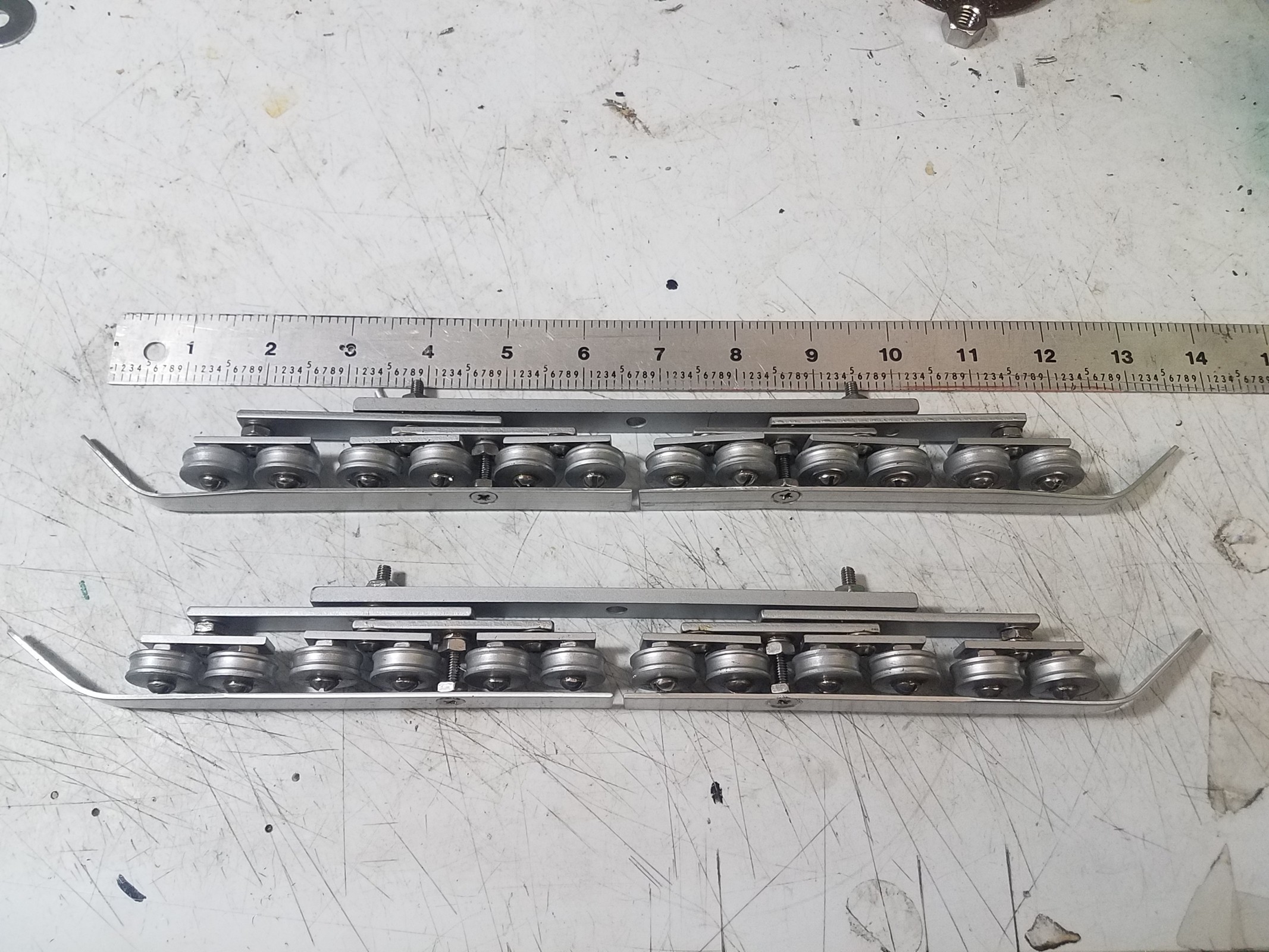

4 sets of 12 sheave tower batterys. Sheave trains.


Anhänge

  • 12 sheave tower batterys. 4 .
    909,5 KB · Aufrufe: 10.048

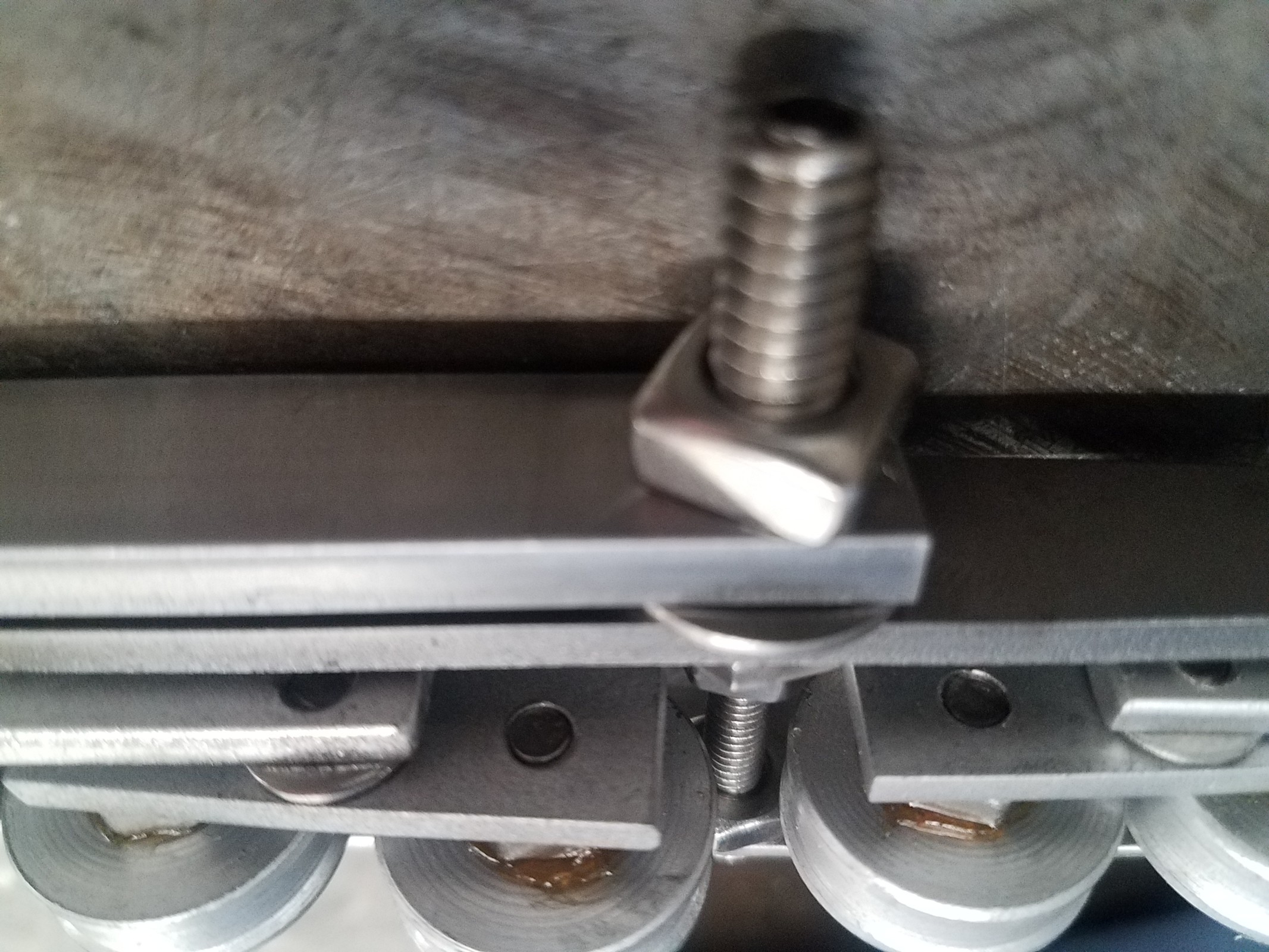

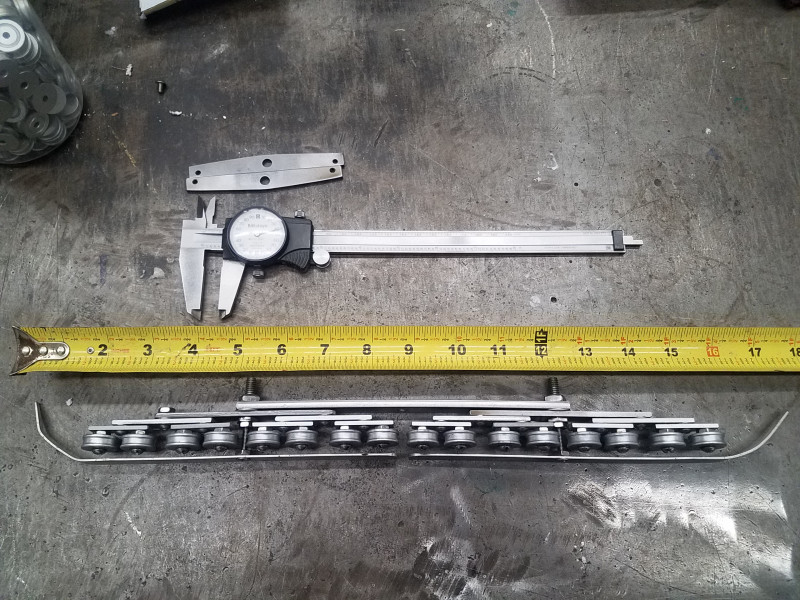

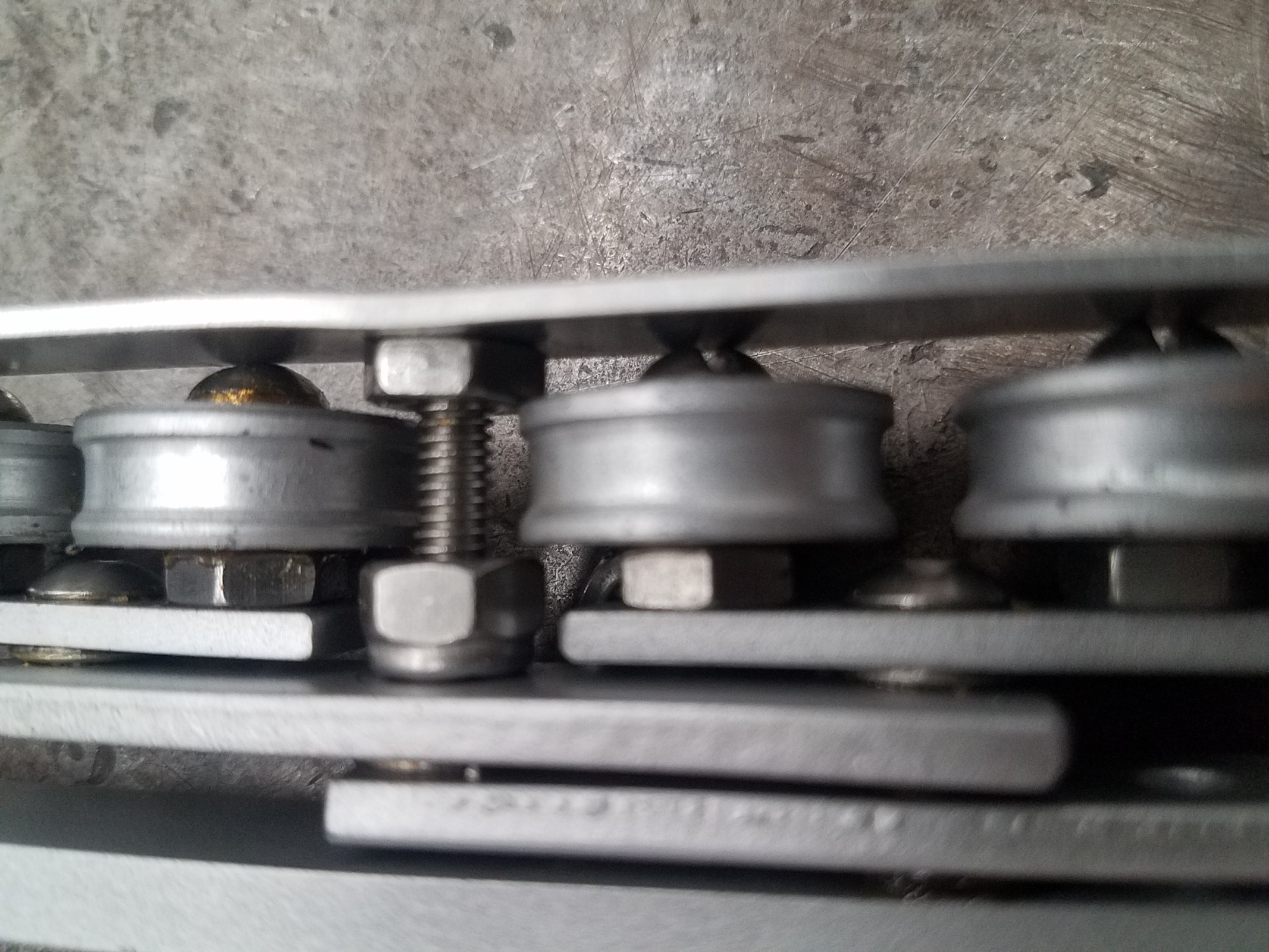

16 sheave tower battery. Made from A2 tool steel. 316 stainless steel bolts and axles.
Built to last a lifetime. This will be installed on the 8 foot tower. Spans between towers is 33 feet and 30 feet.


Anhänge

  • 20190301_170749.jpg
    1 MB · Aufrufe: 9.952
  • 20190301_170802.jpg
    860,4 KB · Aufrufe: 9.951
  • 20190301_170814.jpg
    633 KB · Aufrufe: 9.956
  • 20190301_170827.jpg
    665,1 KB · Aufrufe: 9.950

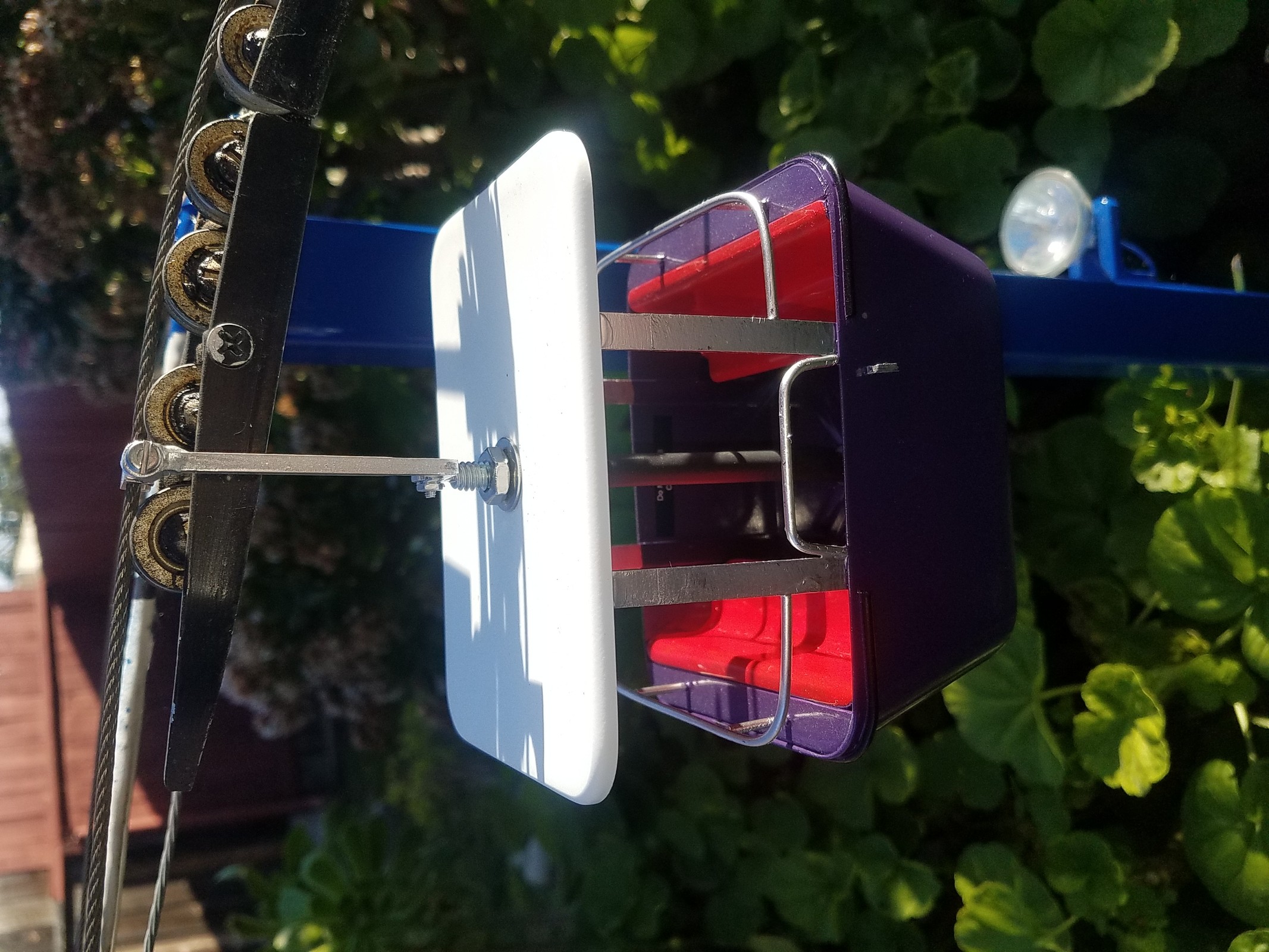

One of the cabins


Anhänge

  • 20190220_080909.jpg
    665,7 KB · Aufrufe: 9.817

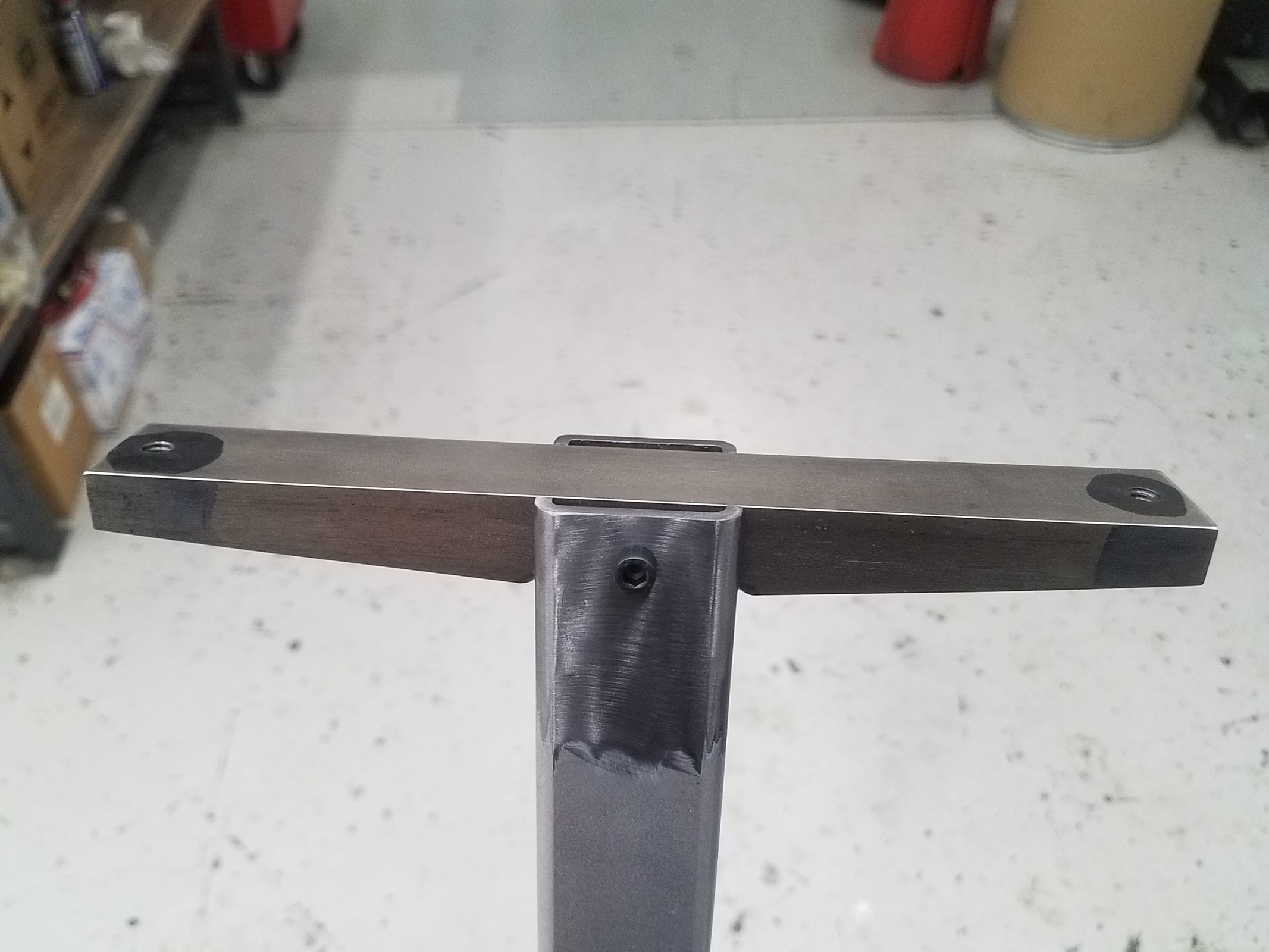

Yes. The towers are all welded. Wire feed. Everything else is all cnc machiened.

Breaking strain on the cable 700 lbs. . Cable is spliced like real ropeways.

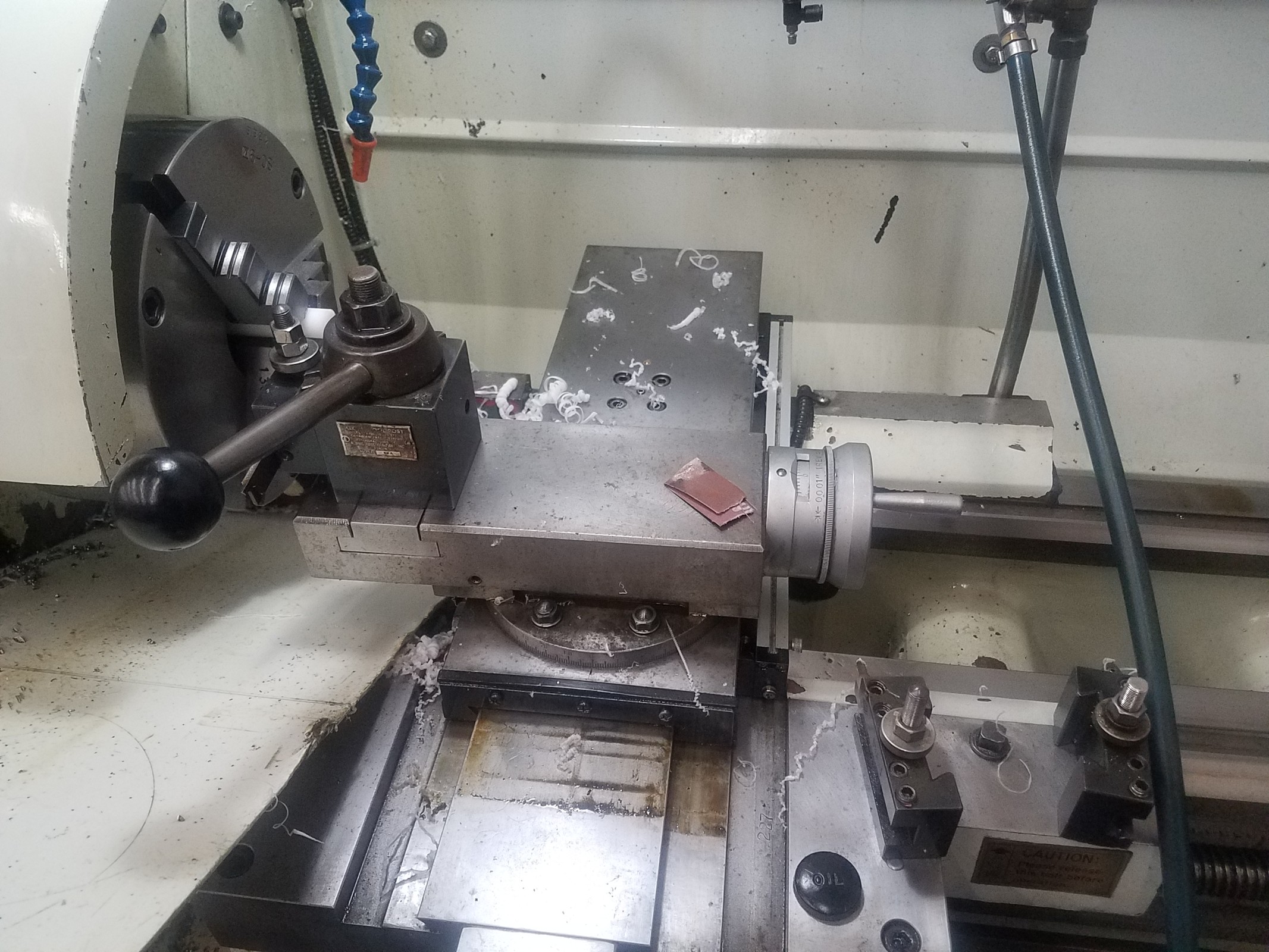

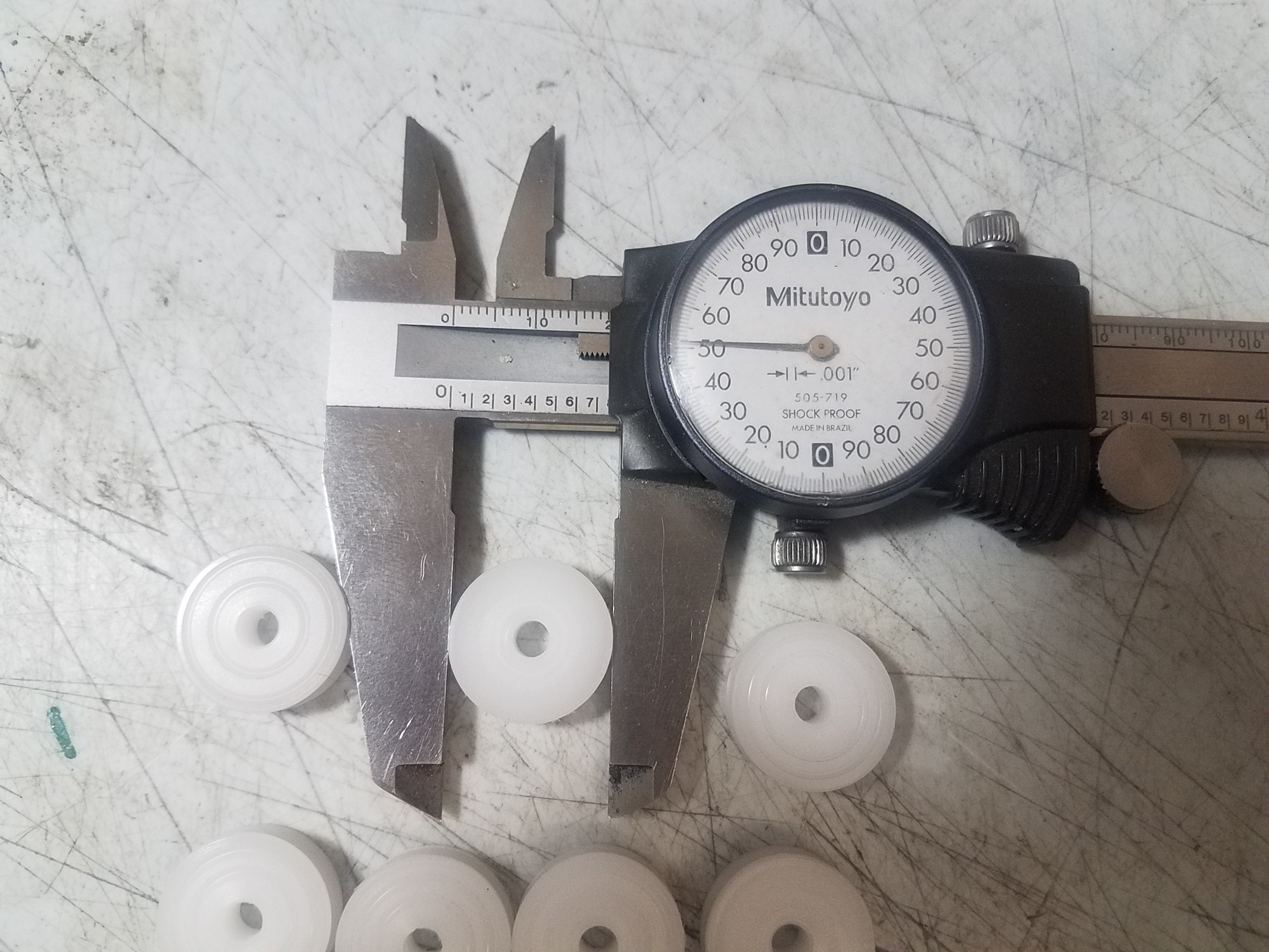

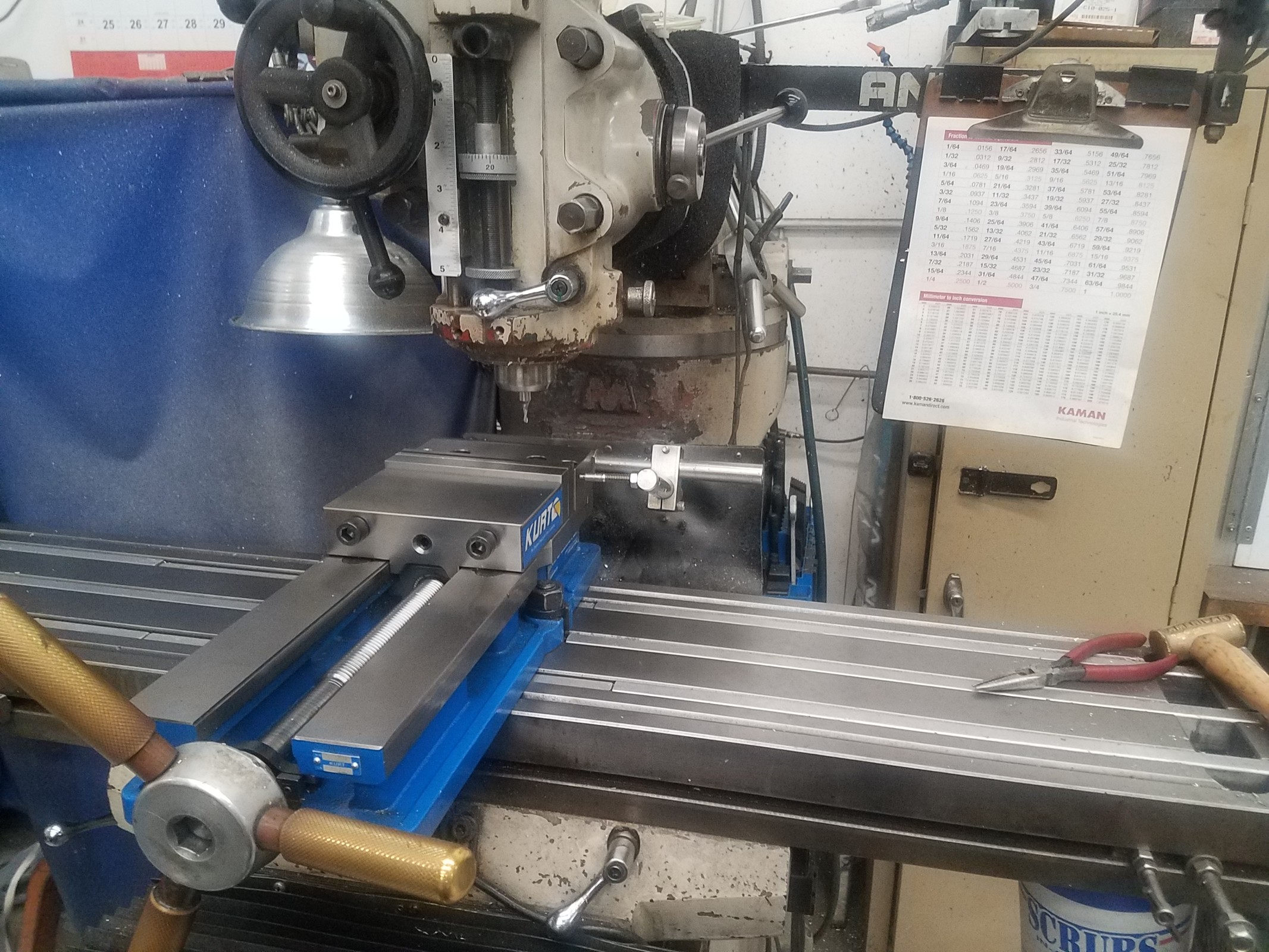

Here are some pictures of my own machine shop. The sheaves i make . These particular sheaves have a deeper groove then the rest of the sheave as these in the industry are known as guide sheaves. These sheaves placed at the front of the sheave train weather a compression or a tower, help align the cable to carry on to the next set of sheaves. These type of sheaves are very common on real ropeways.


Anhänge

  • 20190313_155344.jpg
    607,2 KB · Aufrufe: 9.463
  • 20190313_155358.jpg
    687,2 KB · Aufrufe: 9.459
  • 20190313_155416.jpg
    757,5 KB · Aufrufe: 9.463

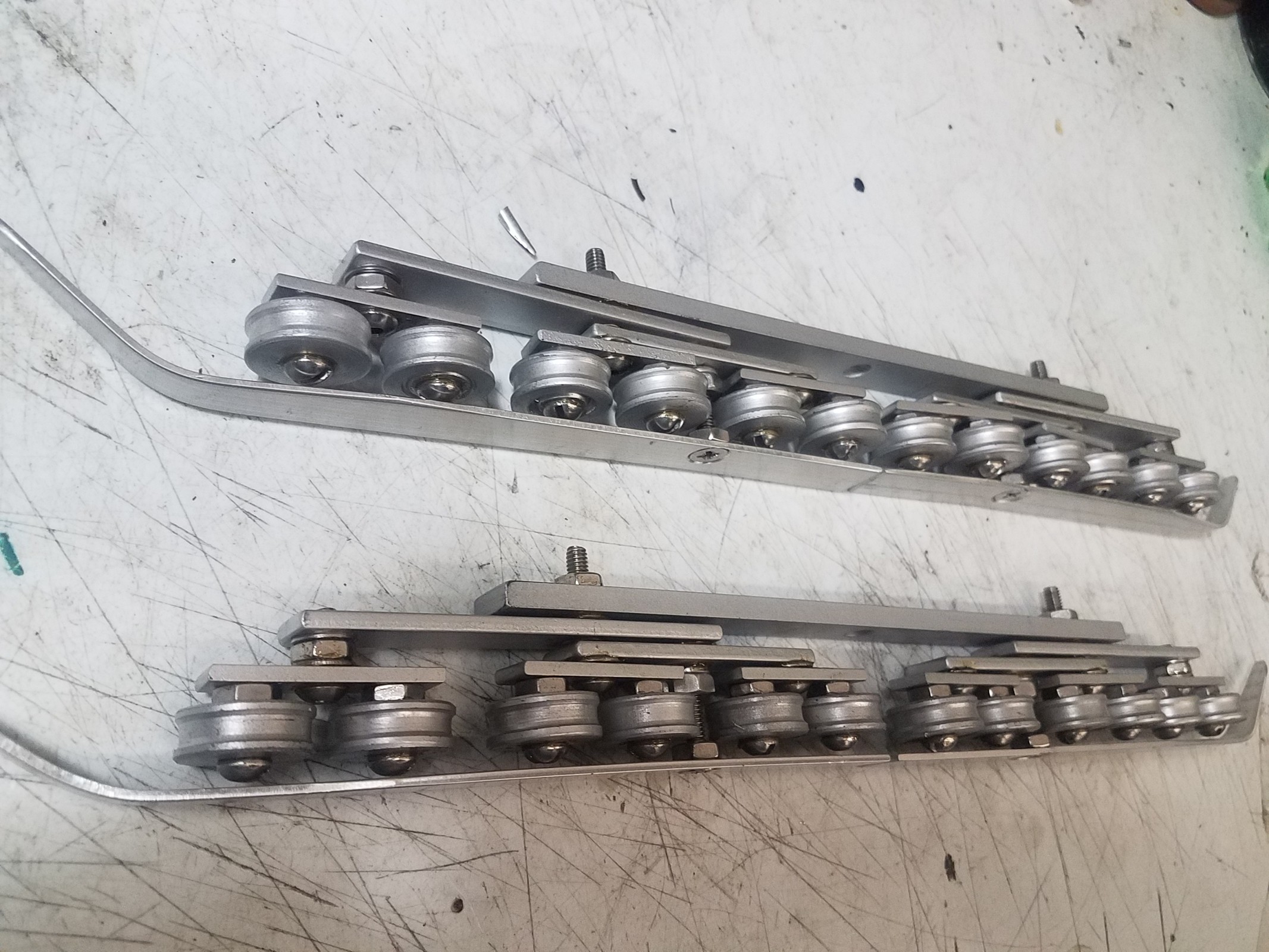

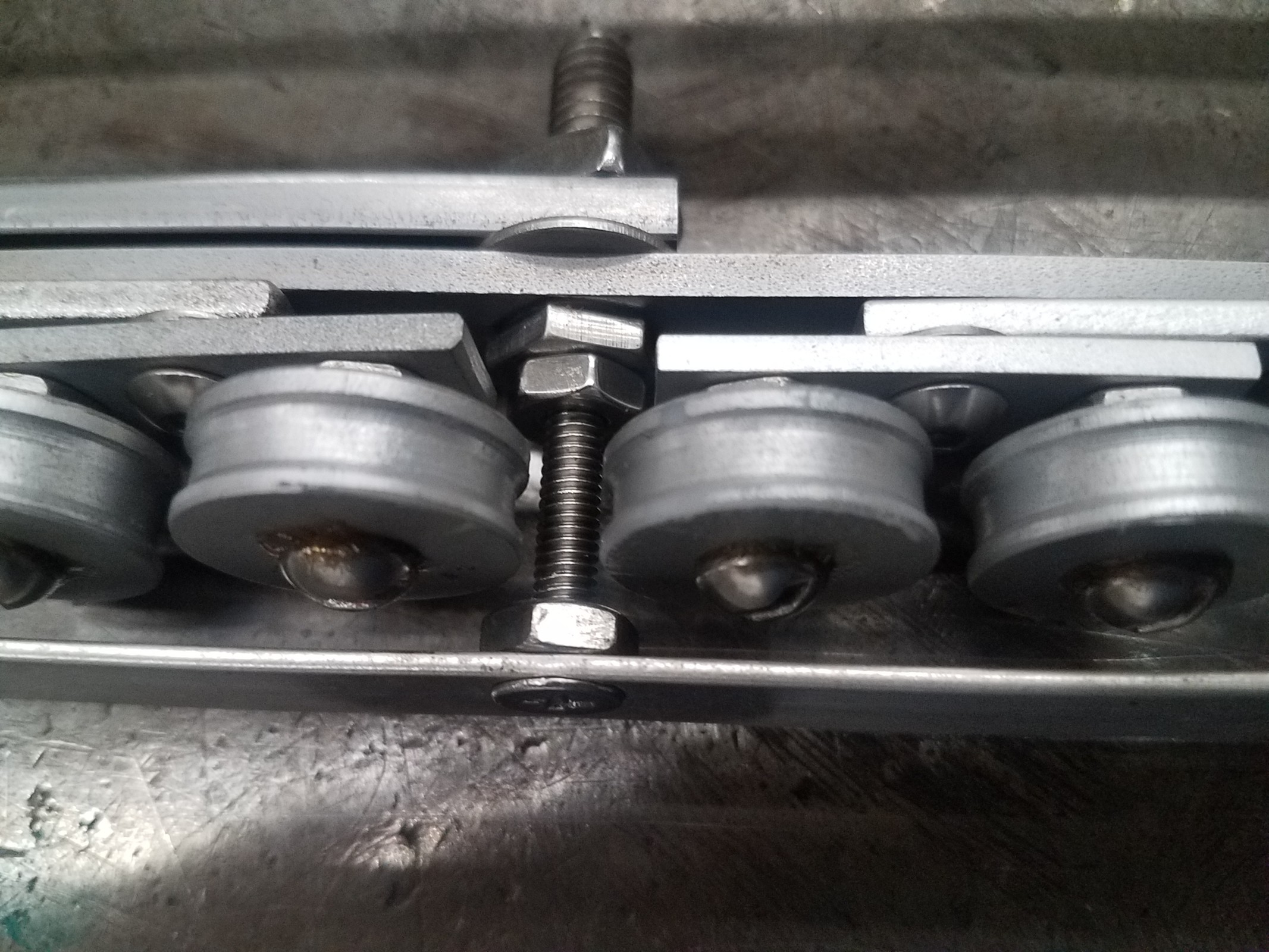

72 hr testing of new 16 sheave roller batterys..50 lbs load test,,flex testing.


Anhänge

  • 16 Sheave .
    825,8 KB · Aufrufe: 8.868

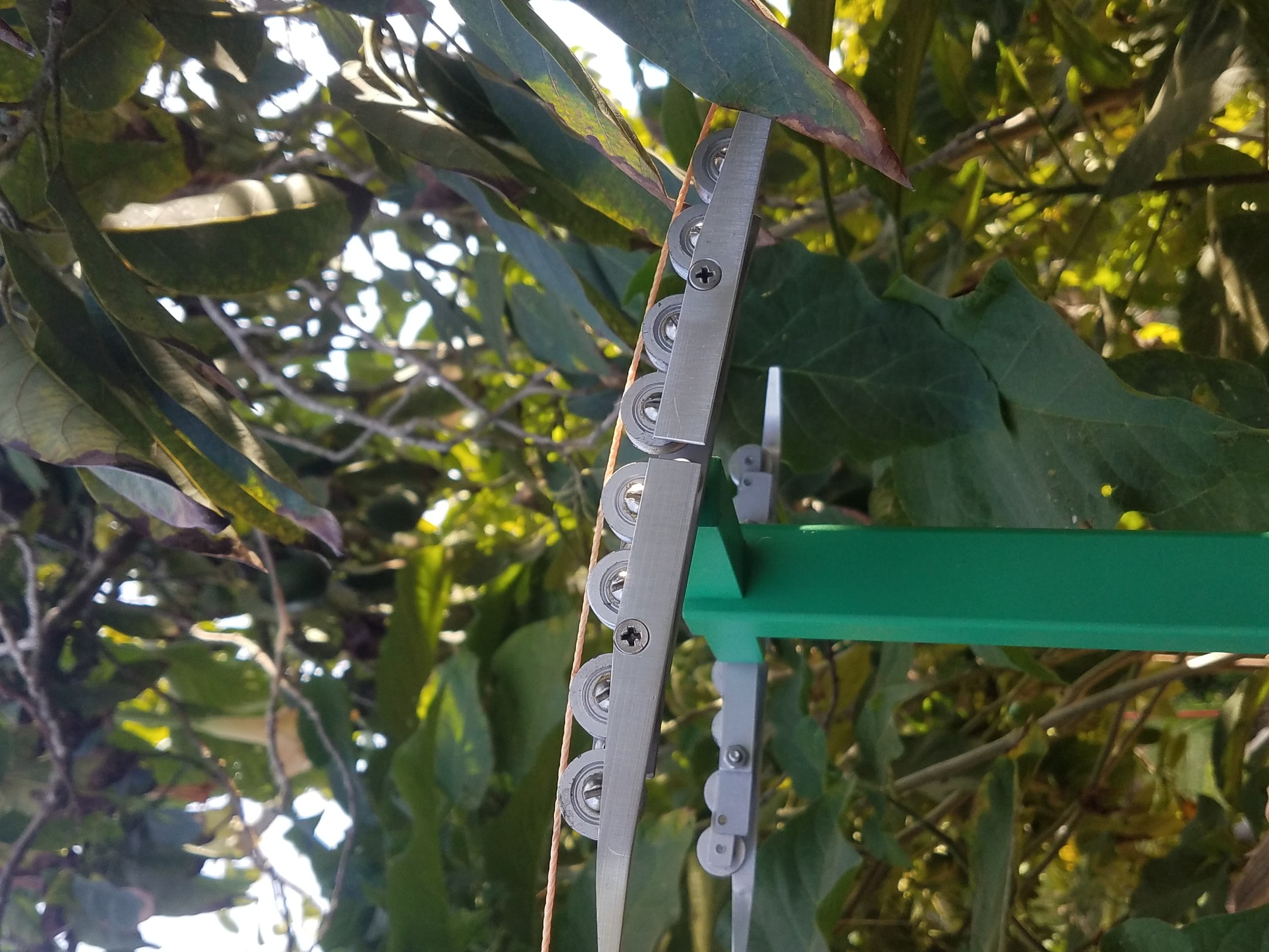

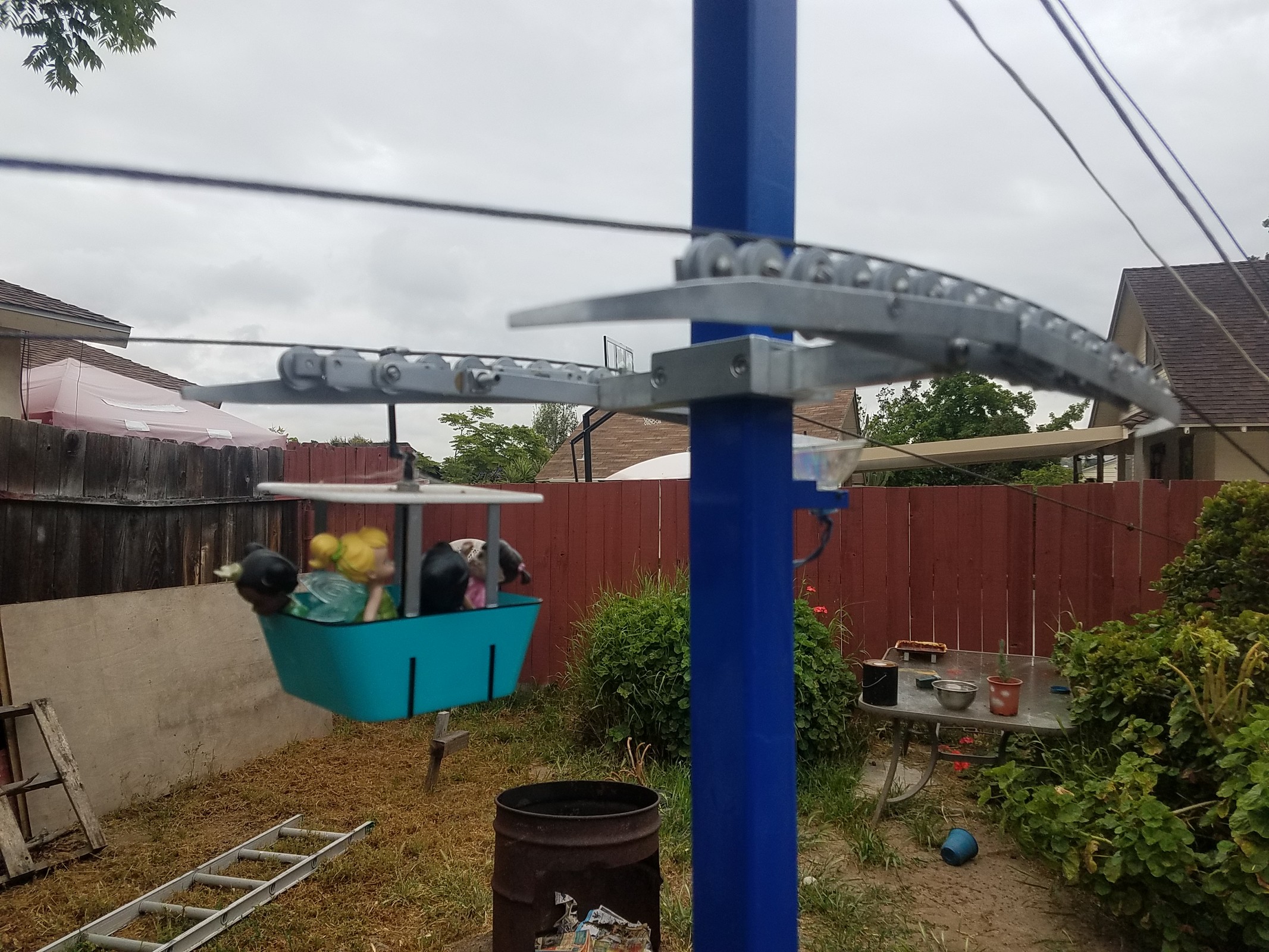

More of the 16 sheave tower batterys on my model Von Roll Skyway. Note special mount was machined for testing purposes. Load tested for 72 hrs.


Anhänge

  • 16 sheave
    785,6 KB · Aufrufe: 8.762
  • 16 sheave
    655,5 KB · Aufrufe: 8.761

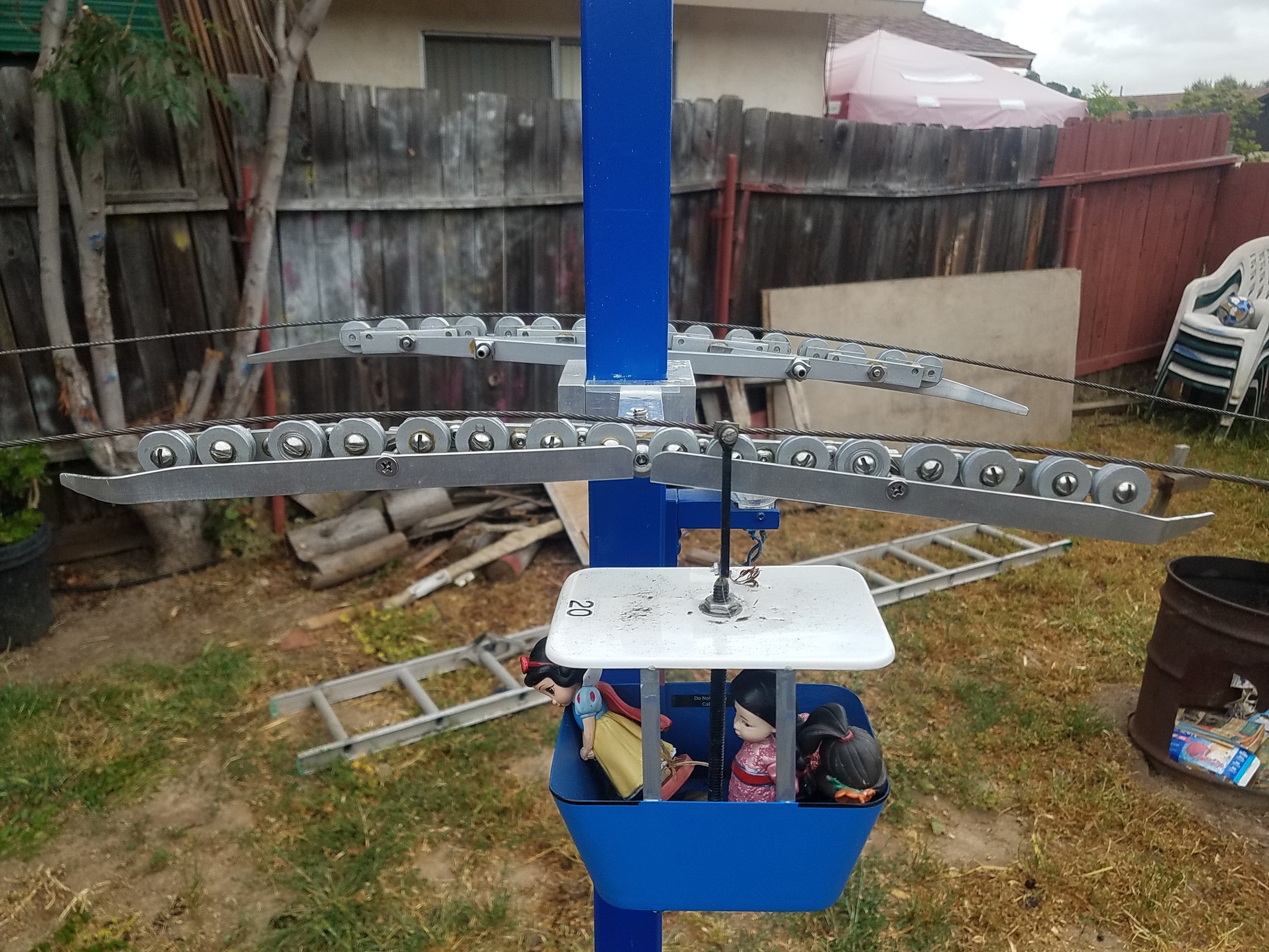

  • Cabin passing over 16 sheave tower batterys. Testing.
    847,1 KB · Aufrufe: 8.769

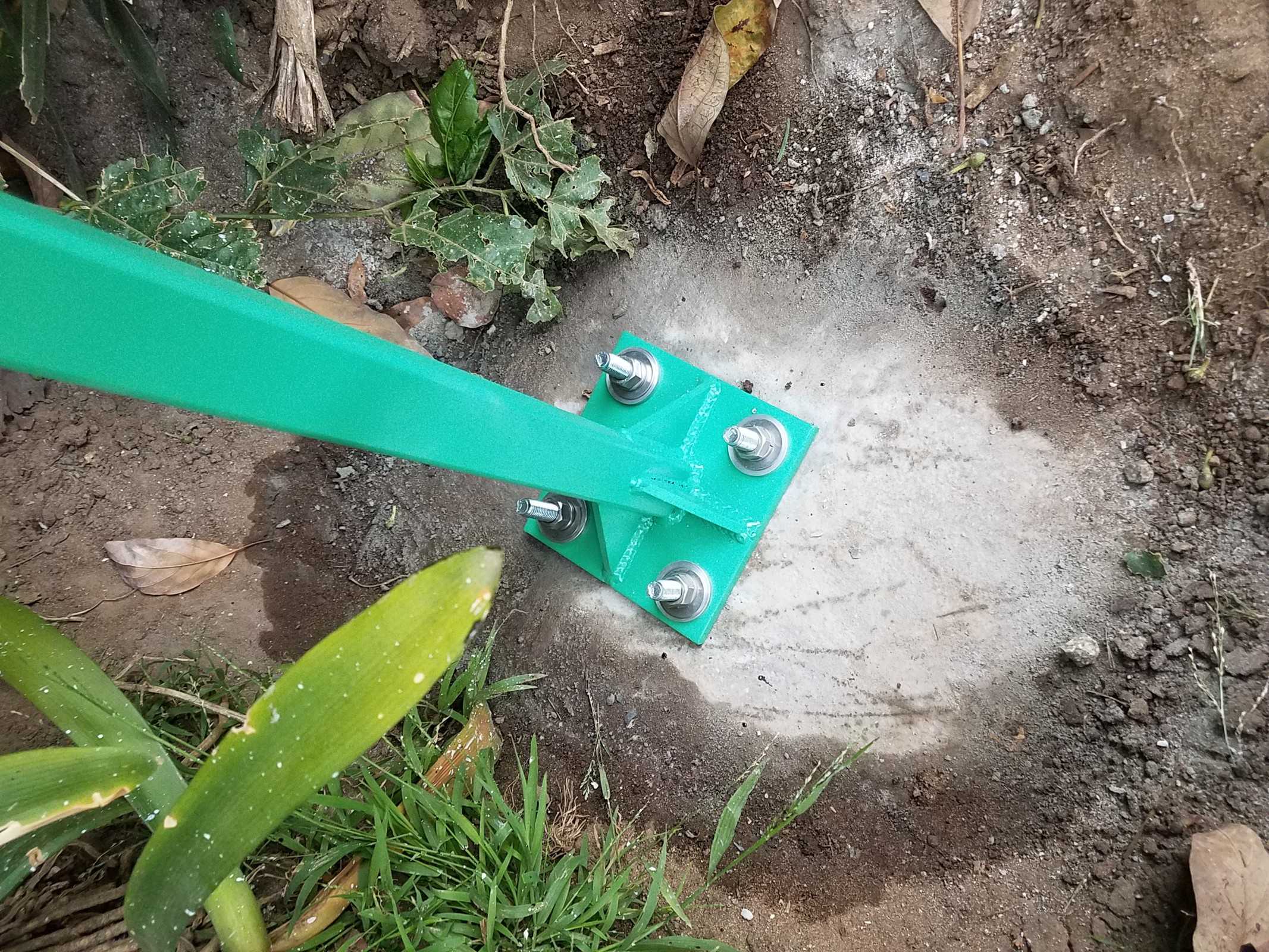

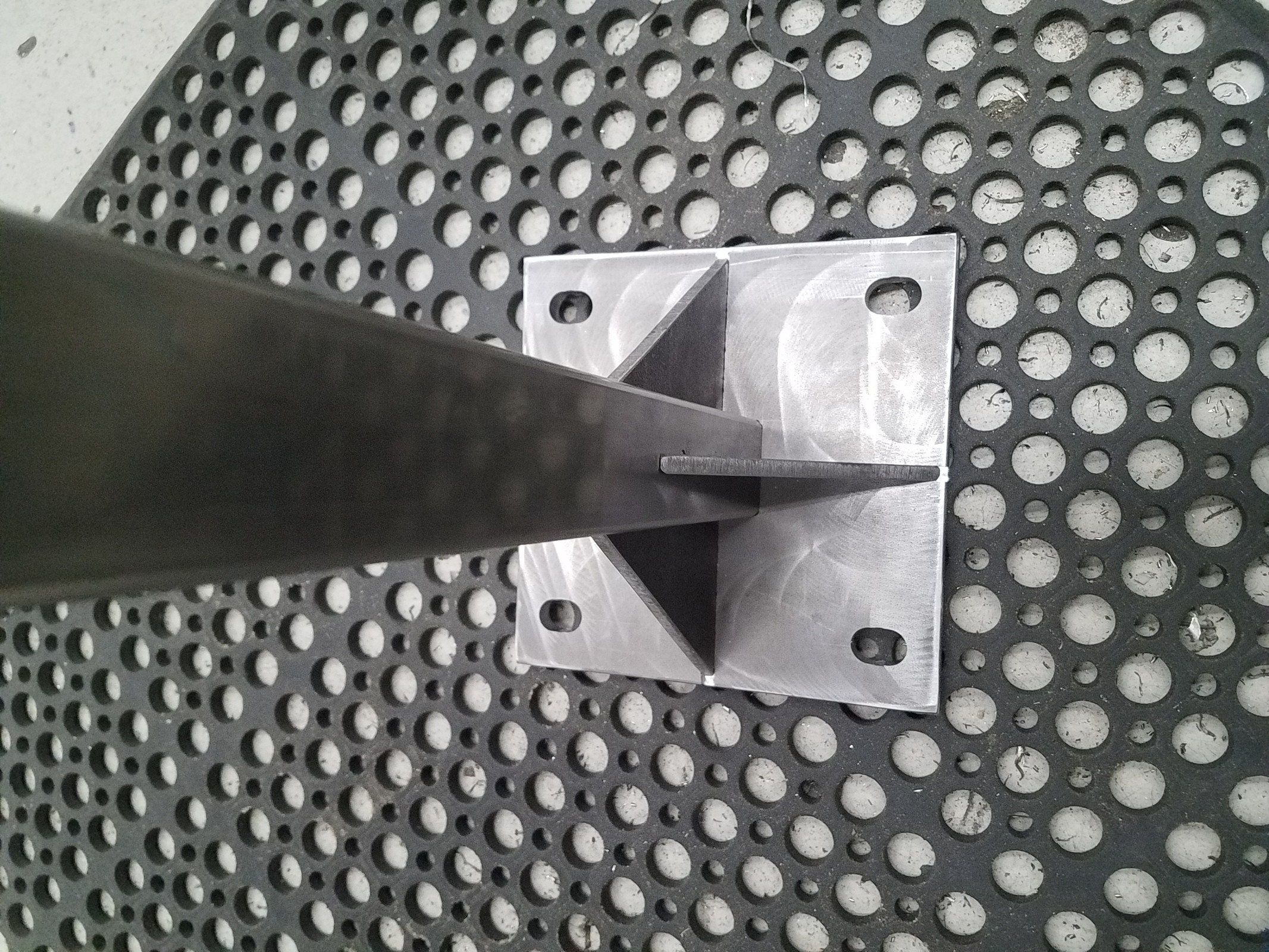

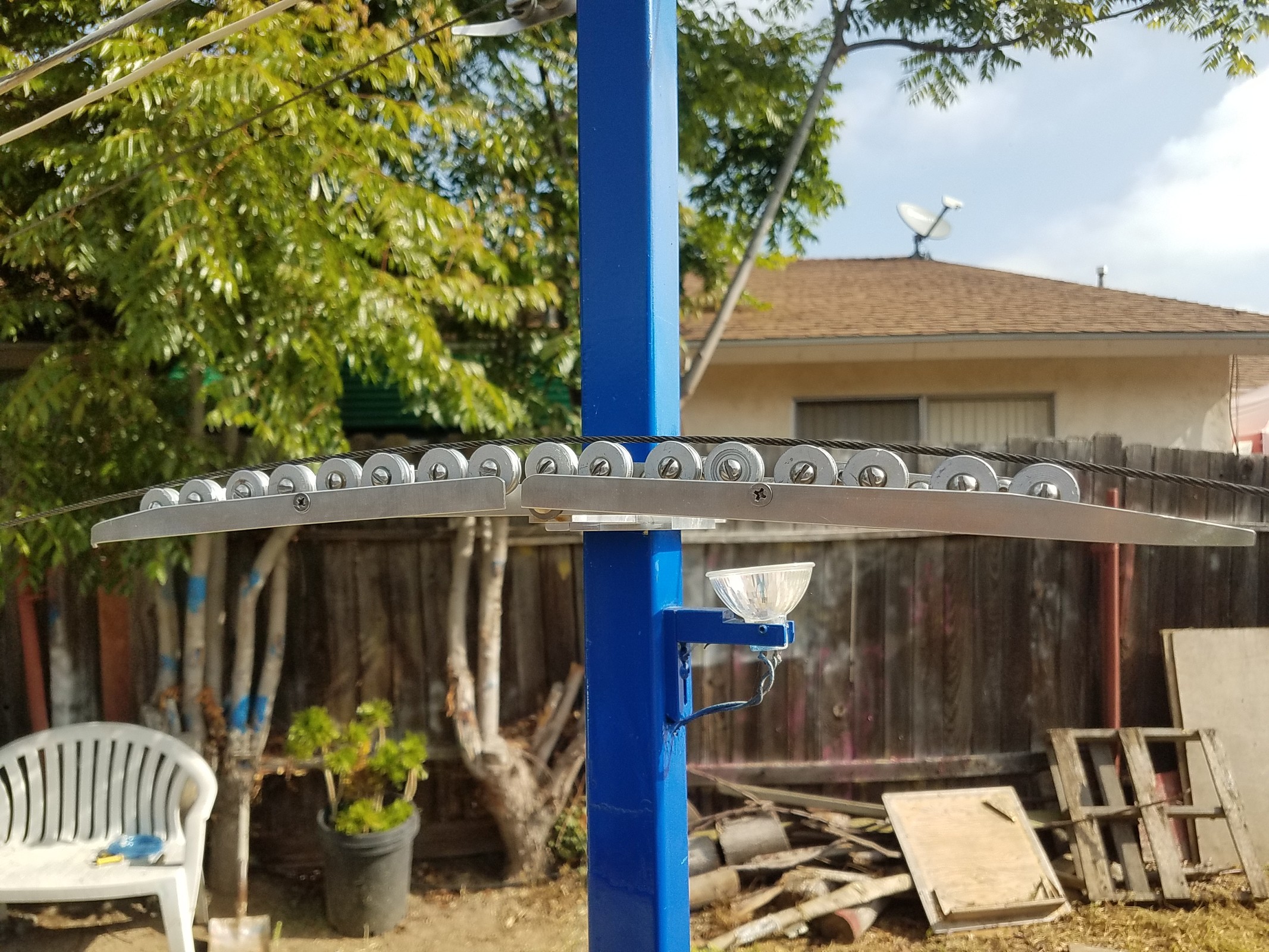

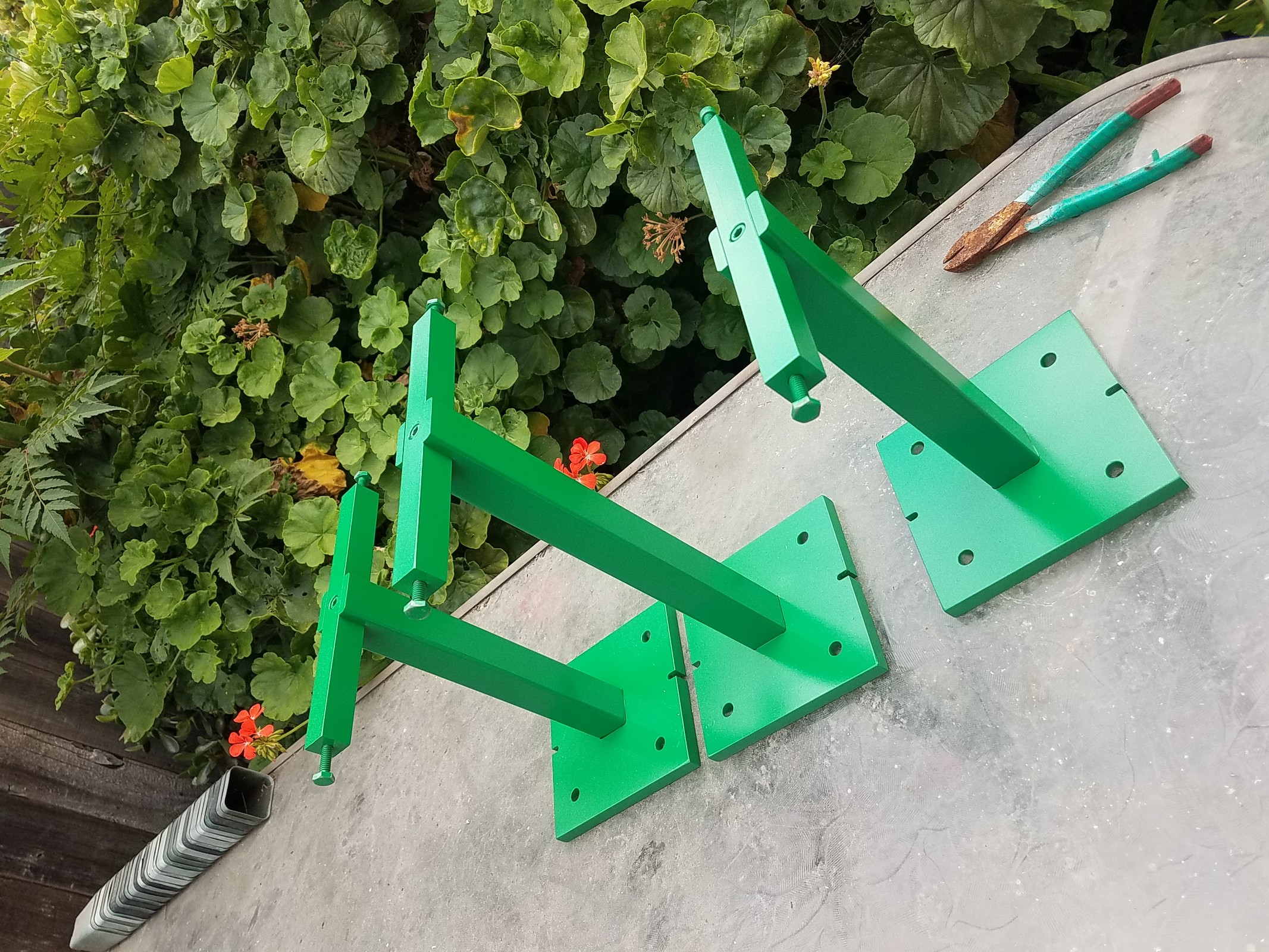

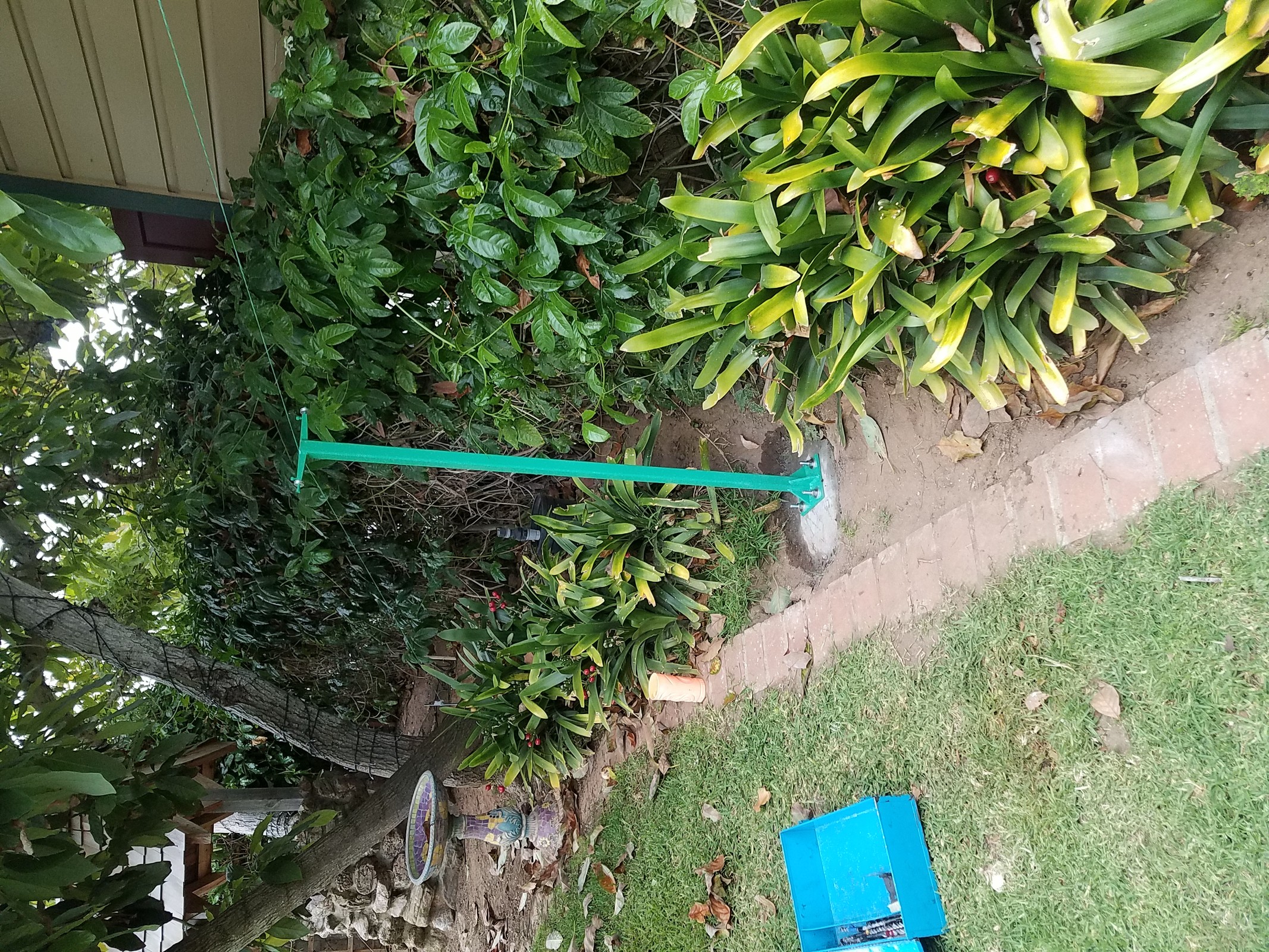

Towers being installed in Carlsbad California USA. Built to last a lifetime. All steel construction. No plastic store bought items. Built like a Von Roll.


Anhänge

  • 20190526_181255.jpg
    1,3 MB · Aufrufe: 8.326
  • 20190526_181311.jpg
    1,3 MB · Aufrufe: 8.326
  • 20190526_181319.jpg
    1,2 MB · Aufrufe: 8.332
  • 20190526_181341.jpg
    965 KB · Aufrufe: 8.328

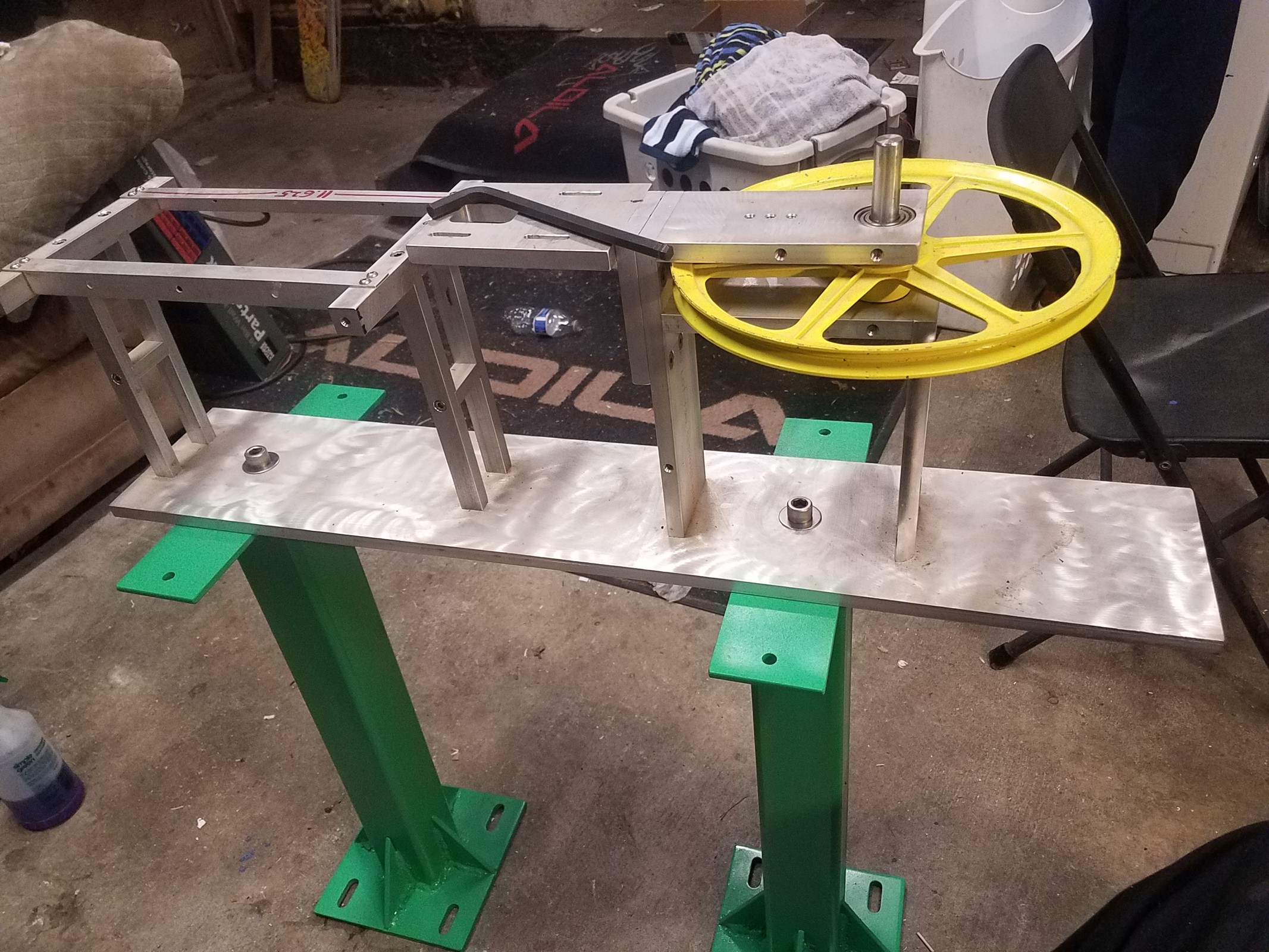

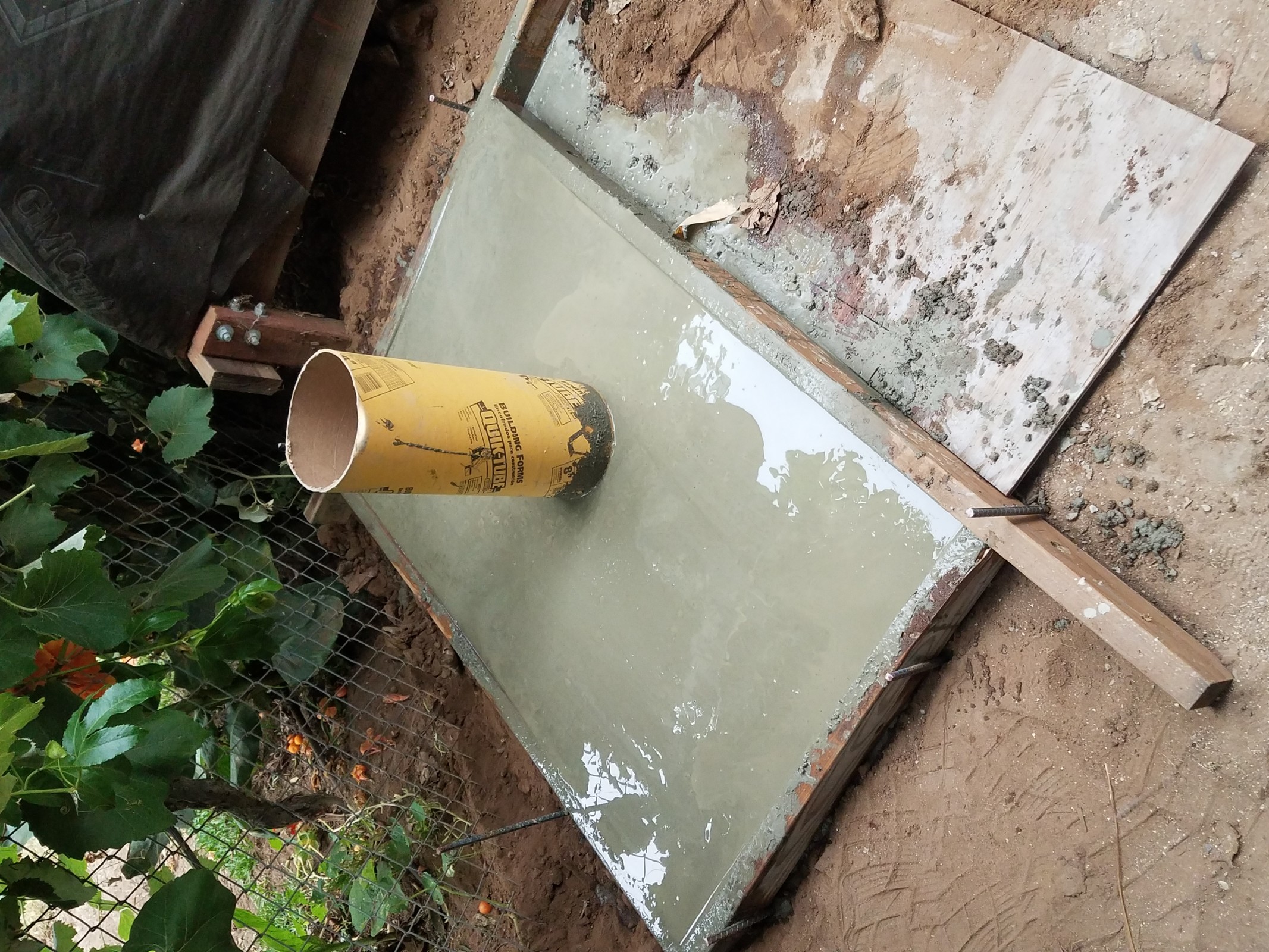

Mocking up the Drive station. Stands on steel pillars 24 in tall. Steel construction.


Anhänge

  • 20190617_215124.jpg
    792,5 KB · Aufrufe: 7.993

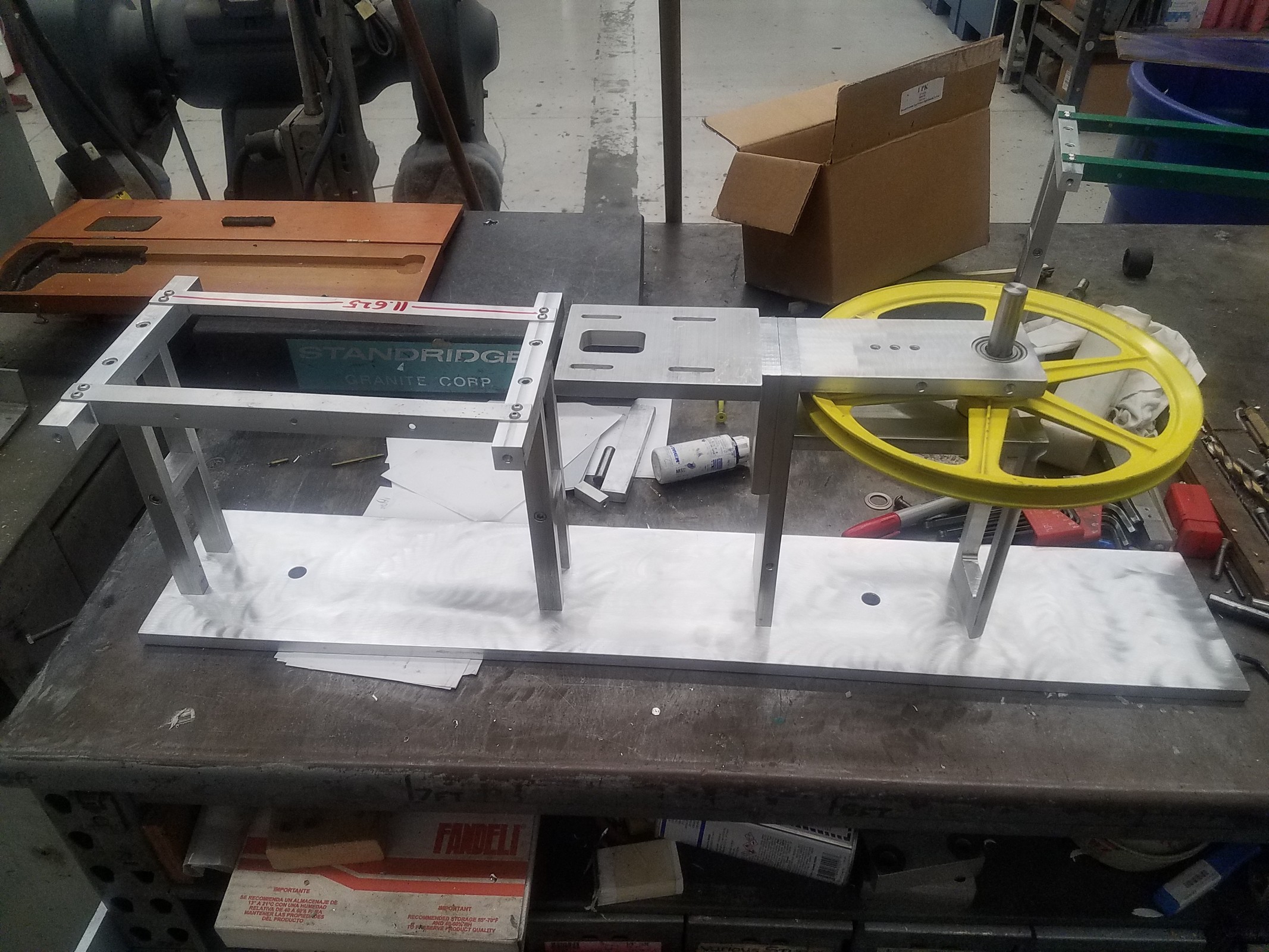

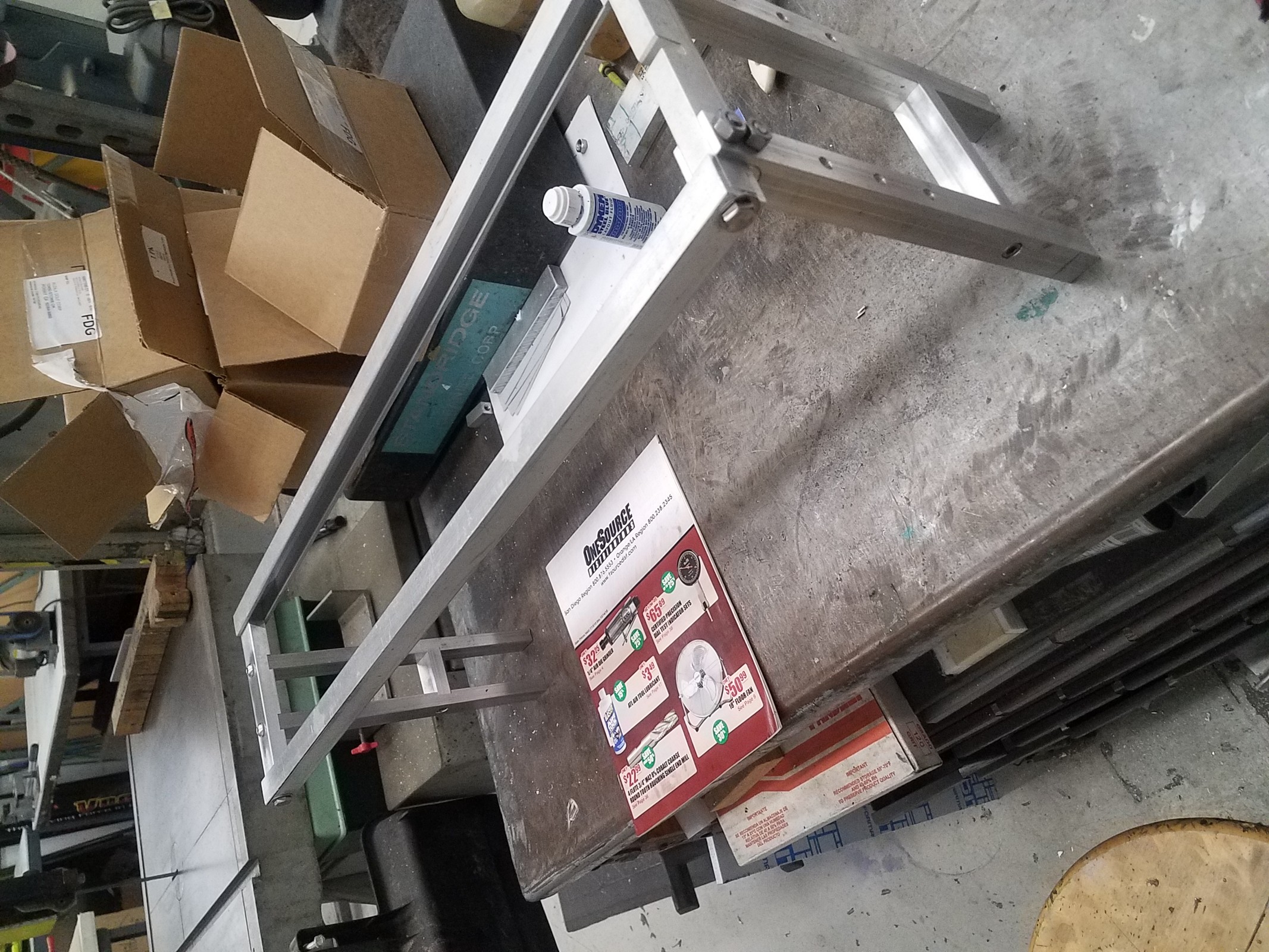

Drive station assembly. Made from 6061 Aluminum
A2 tool steel
Steel tubing .375 wall thickness.
Drive motor 1/4 hp 90 volt gear motor 10.5 RPM.
Chain drive.
Entire drive set weight 102 lbs.
No plastic construction.
No off the shelf parts.
Built to last a lifetime.
Von Roll tough..


Anhänge

  • 20190626_000908.jpg
    828,7 KB · Aufrufe: 7.848

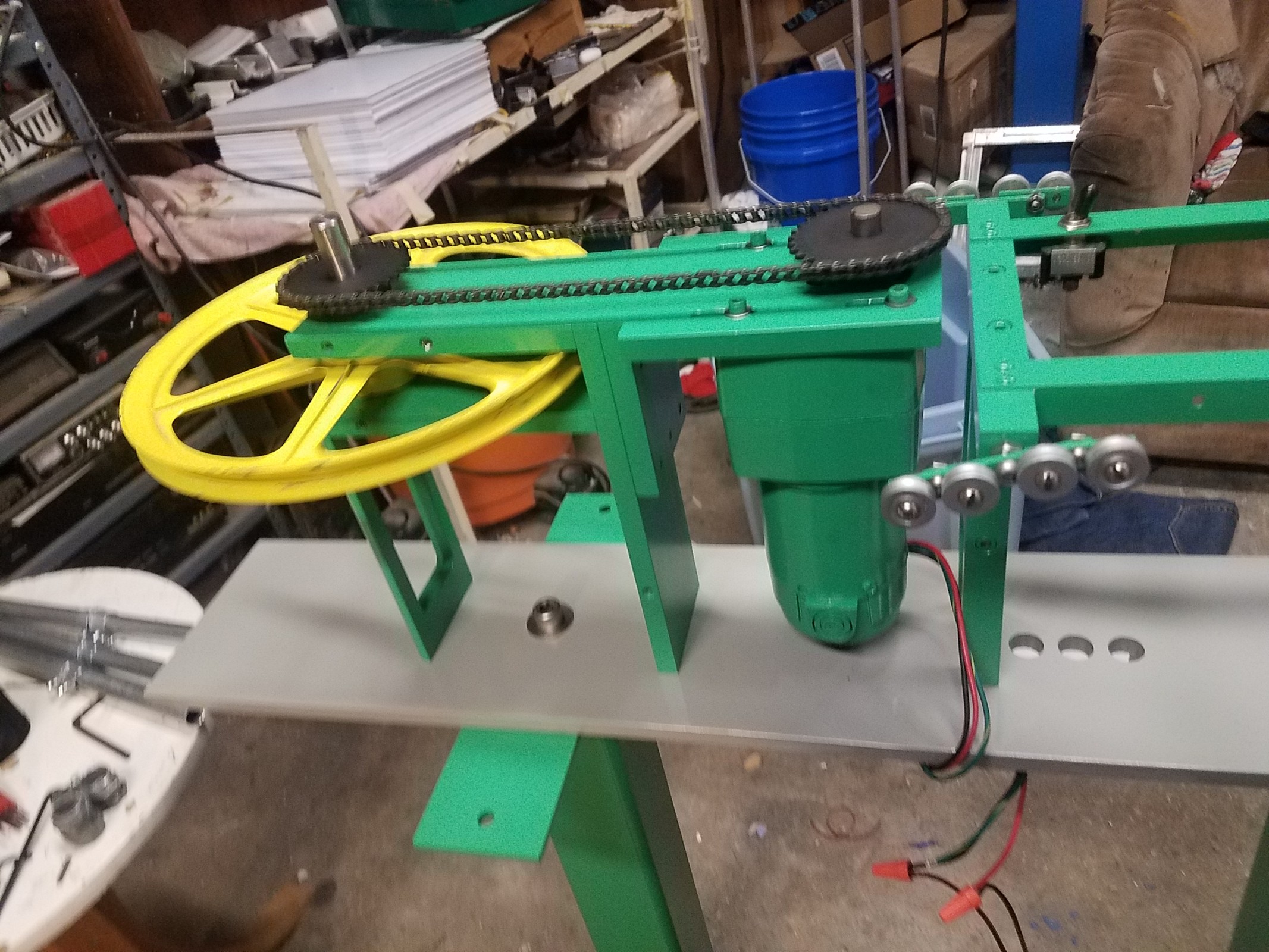

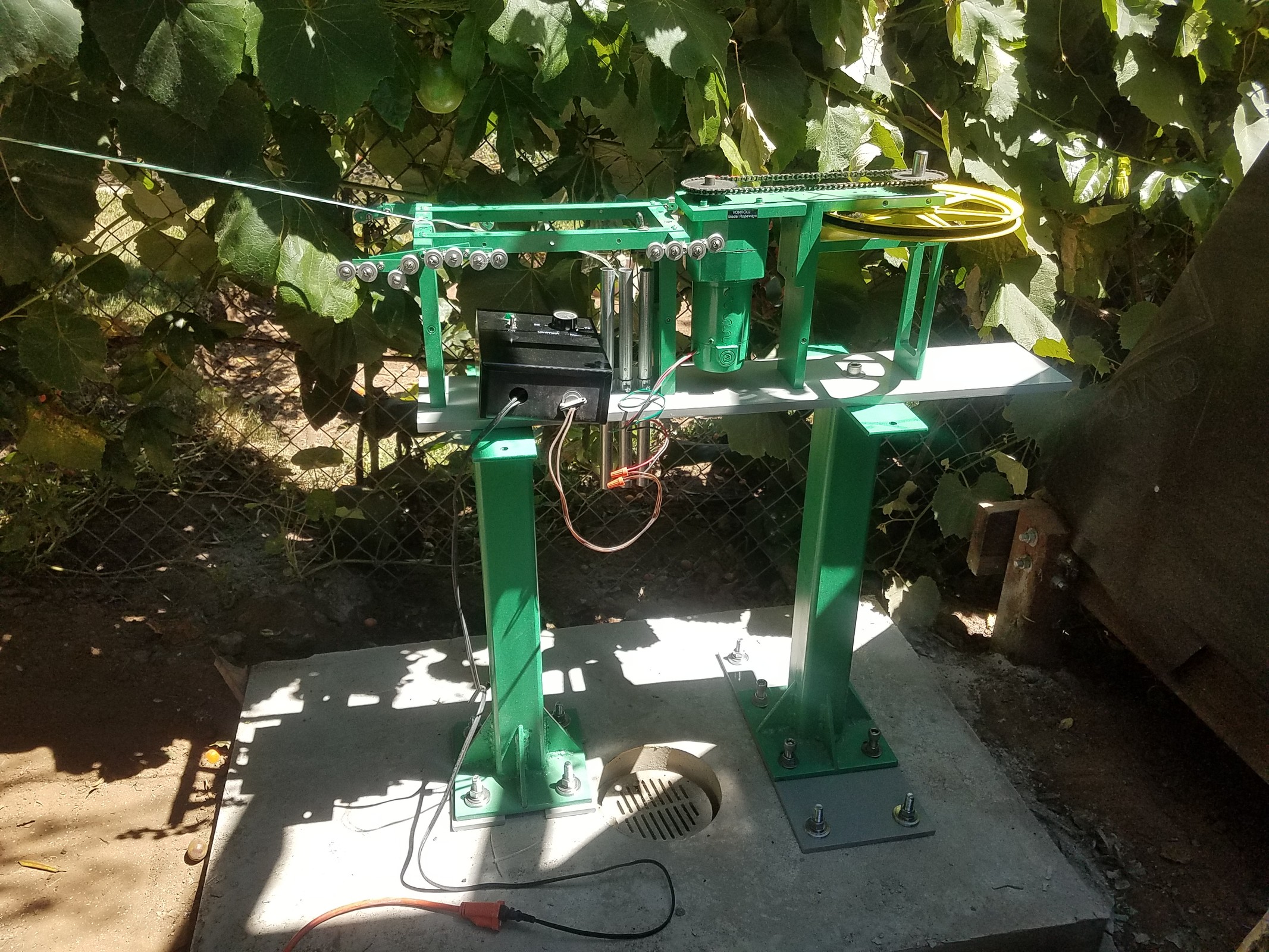

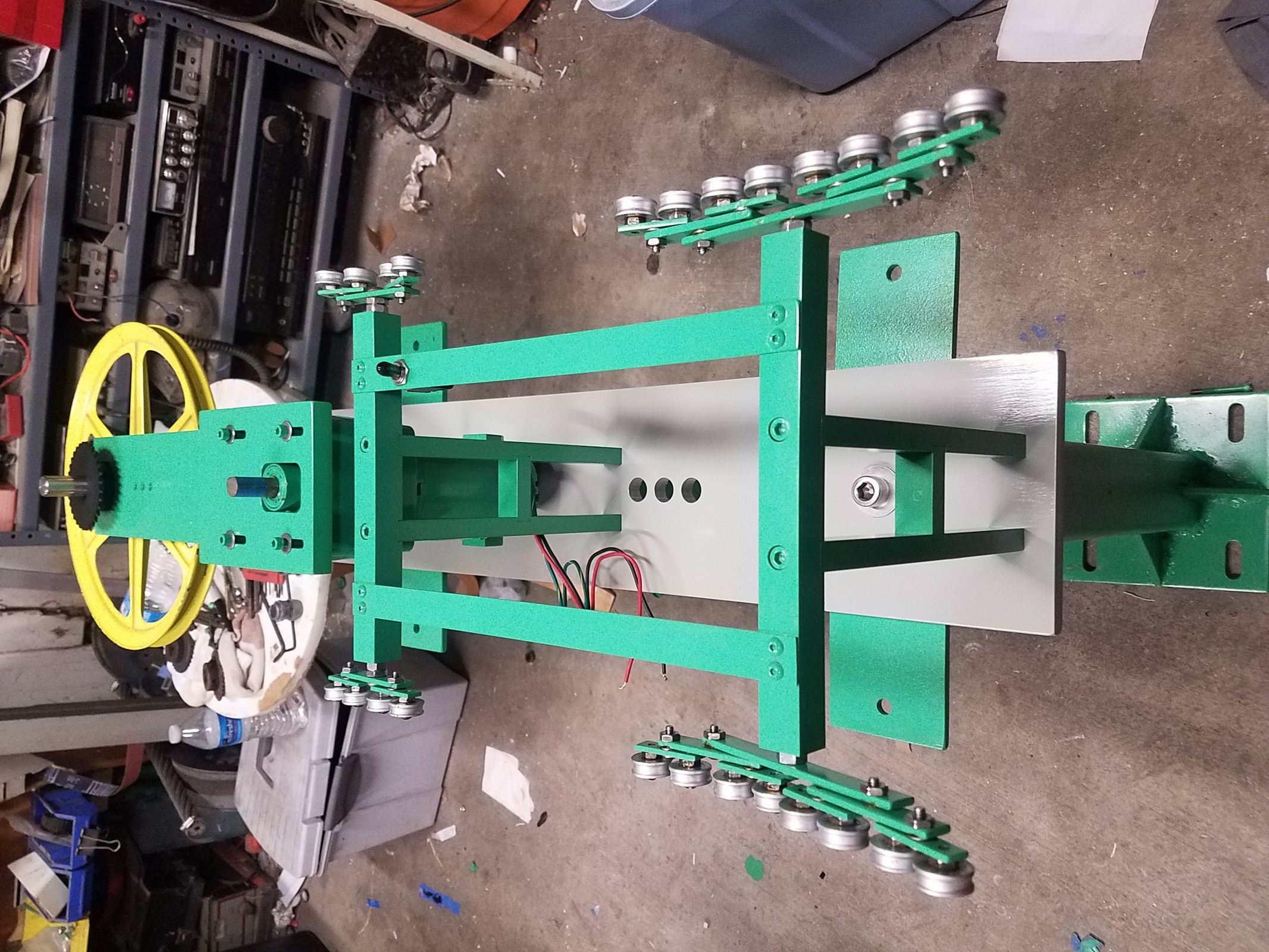

Completed drive station .
Weight 122 lbs.
Doing 72 hr non stop testing.


Anhänge

  • 20190626_201337_027.jpg
    723,6 KB · Aufrufe: 7.790
