Another model Von Roll Skyride being installed

[VONROLLVR101]

Hello from the USA...
This is another customer ..
Located in Carlsbad California USA.
Length 94 feet long.
Highest tower 9 feet tall!!!.
Going thru the top of a shed.

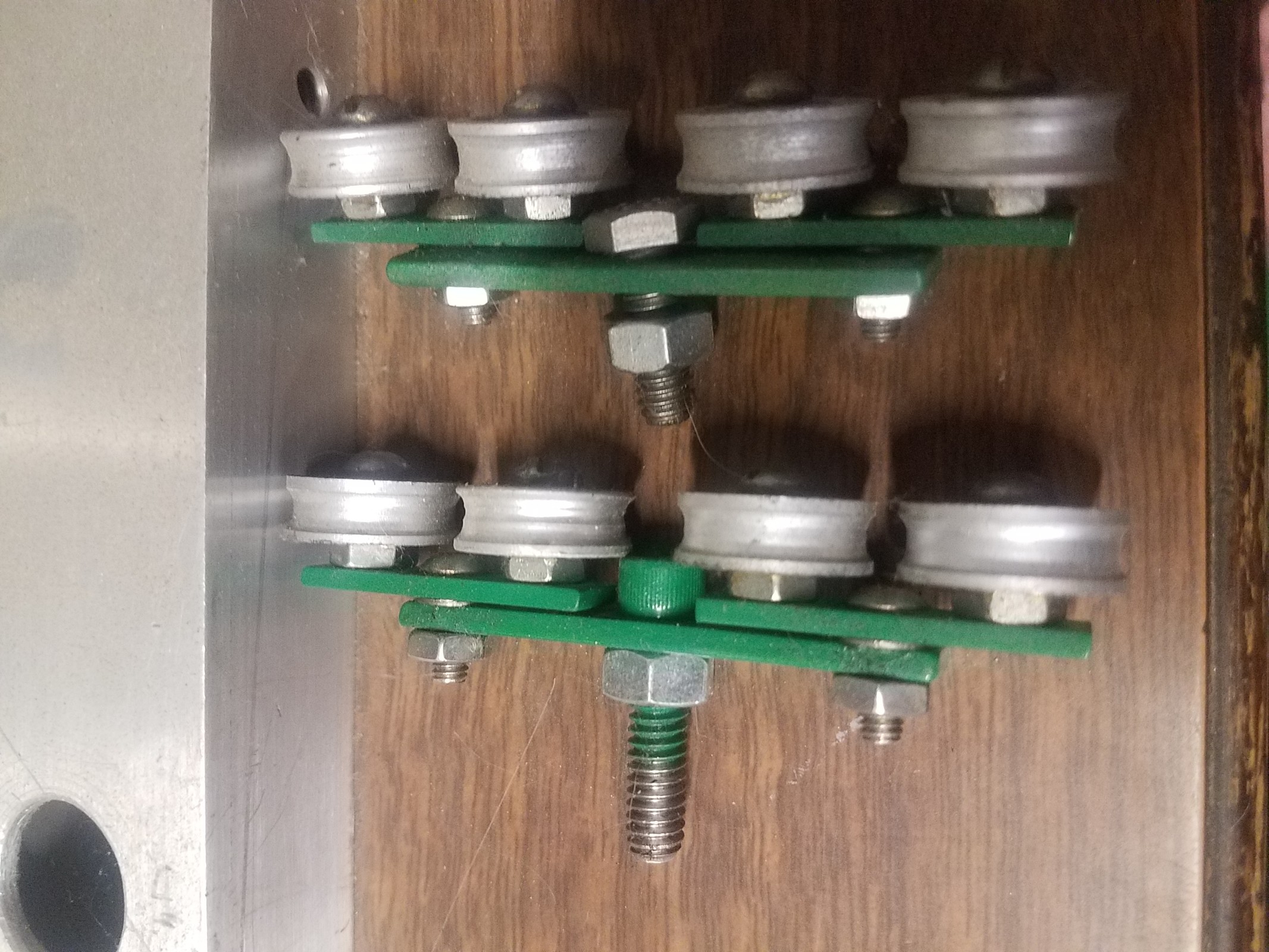

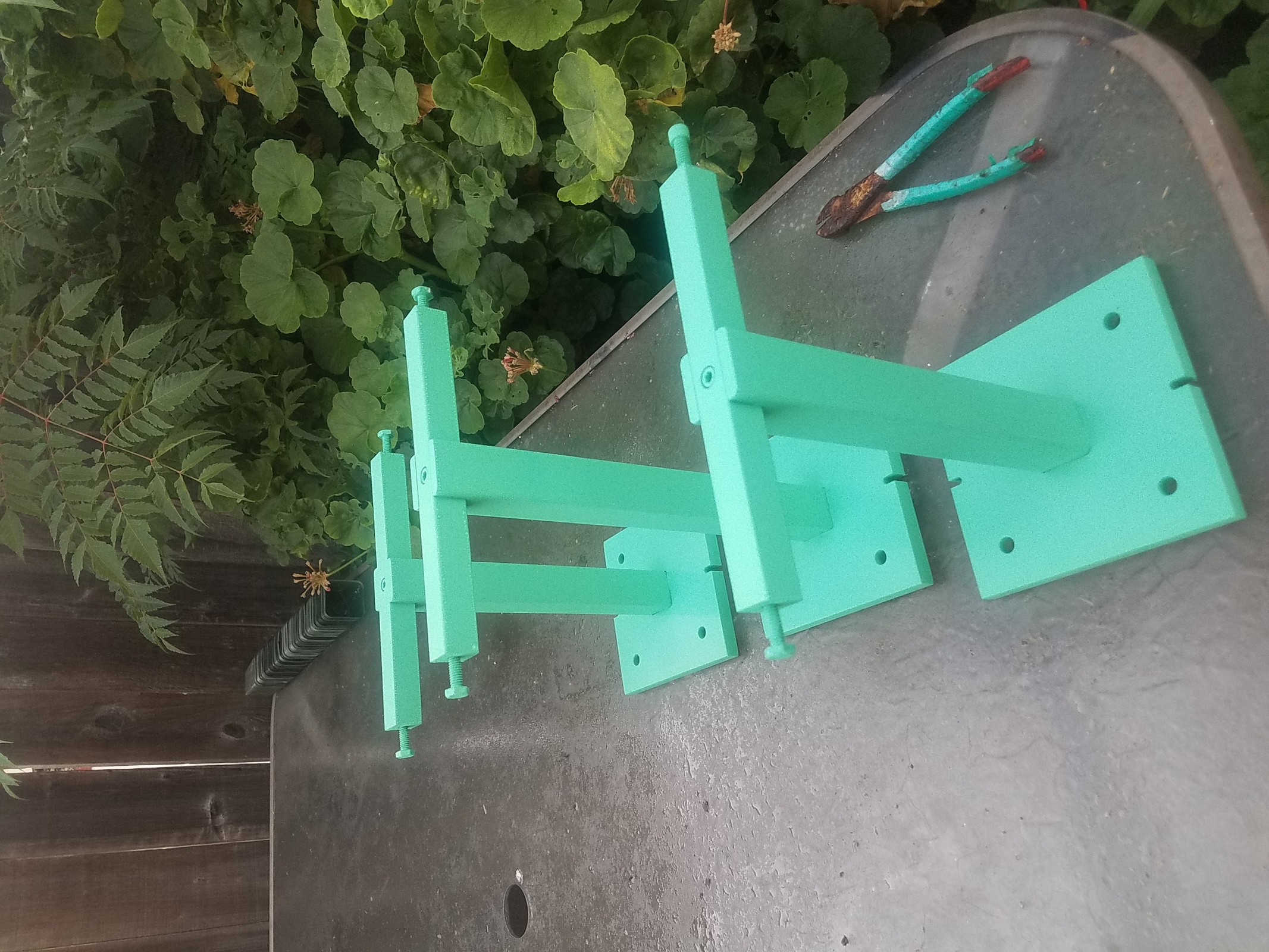

Shed will have 3 short towers each one will have a set of 8 sheave tower batterys. .
Counter weight 19 pounds with 2 feet of bullwheel travel.
Max span between towers 31 feet.
Cabin capacity 42.
High quality materials.
Made from 6061 Aircraft Aluminium
2024 high tortion Aluminum
A2 tool steel
High carbon steel
Oil impregnated delrin
Built to last a lifetime.
No plastic superstructures.
Stainless steel cable spliced.



[stephezapo]

Exceptional build quality as usual, keep up the good work!
Looking forward to the final result!

(and please rotate the photos 90 degrees )



[VONROLLVR101]

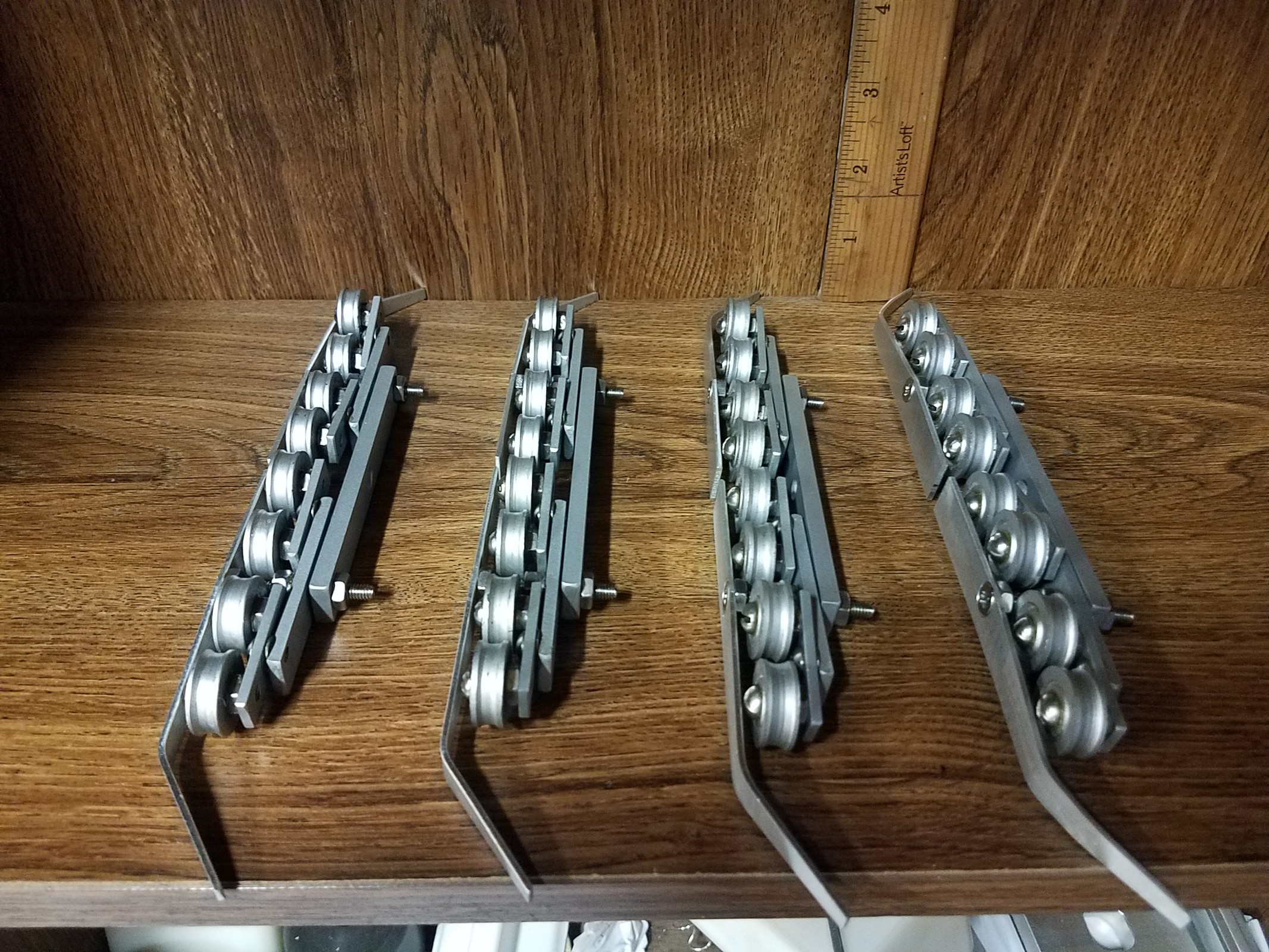

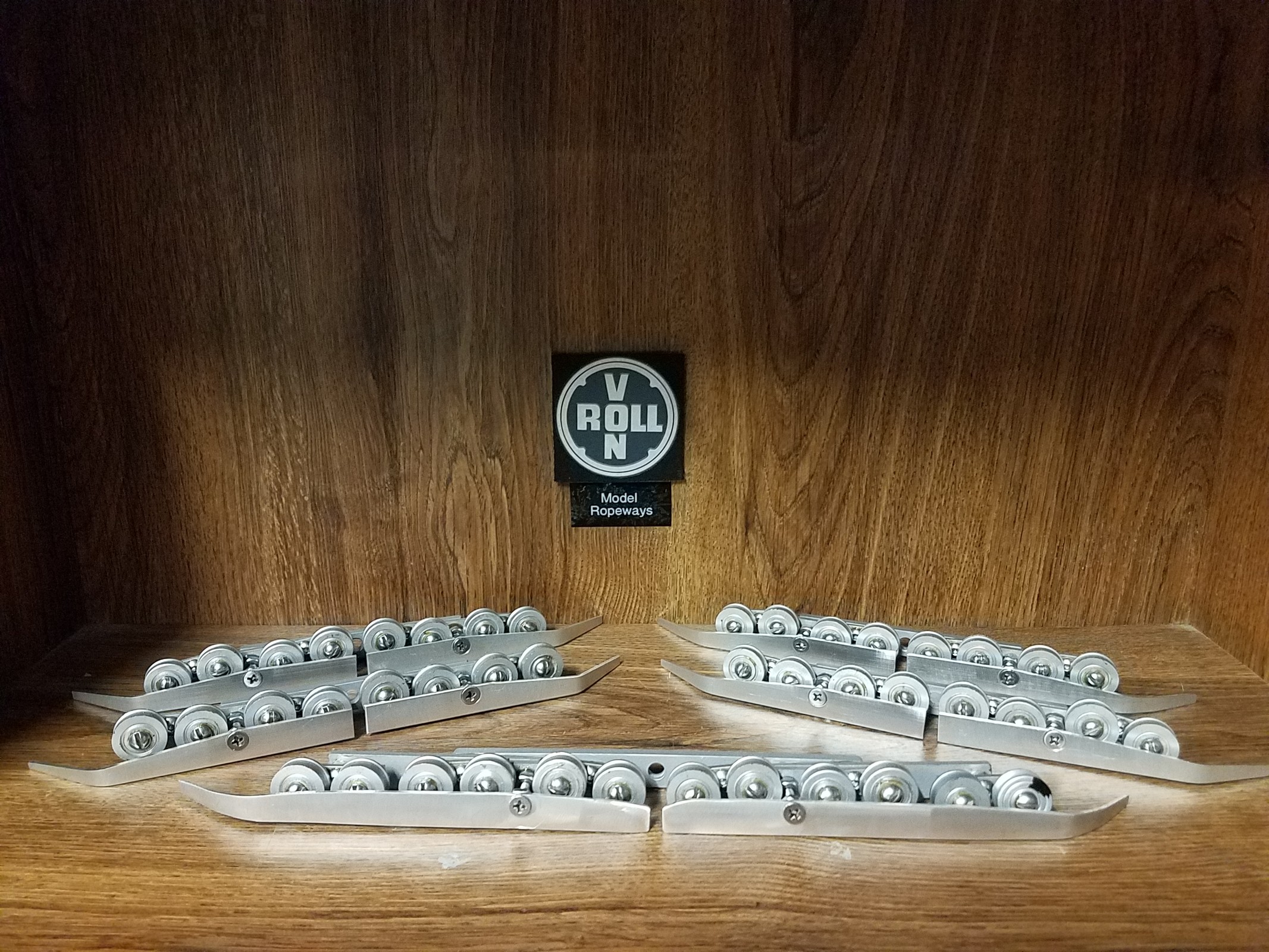

8 sheave tower batterys.
Made from A2 tool steel hardened.
All 316 Stainless steel screws , spacers, nuts.
Sheaves are UV resistant Delrin.
G scale.
Outter sheave guard 6061 Aluminum
All machiened to tolerance +/- .003
All parts are built to last a lifetime



[VONROLLVR101]

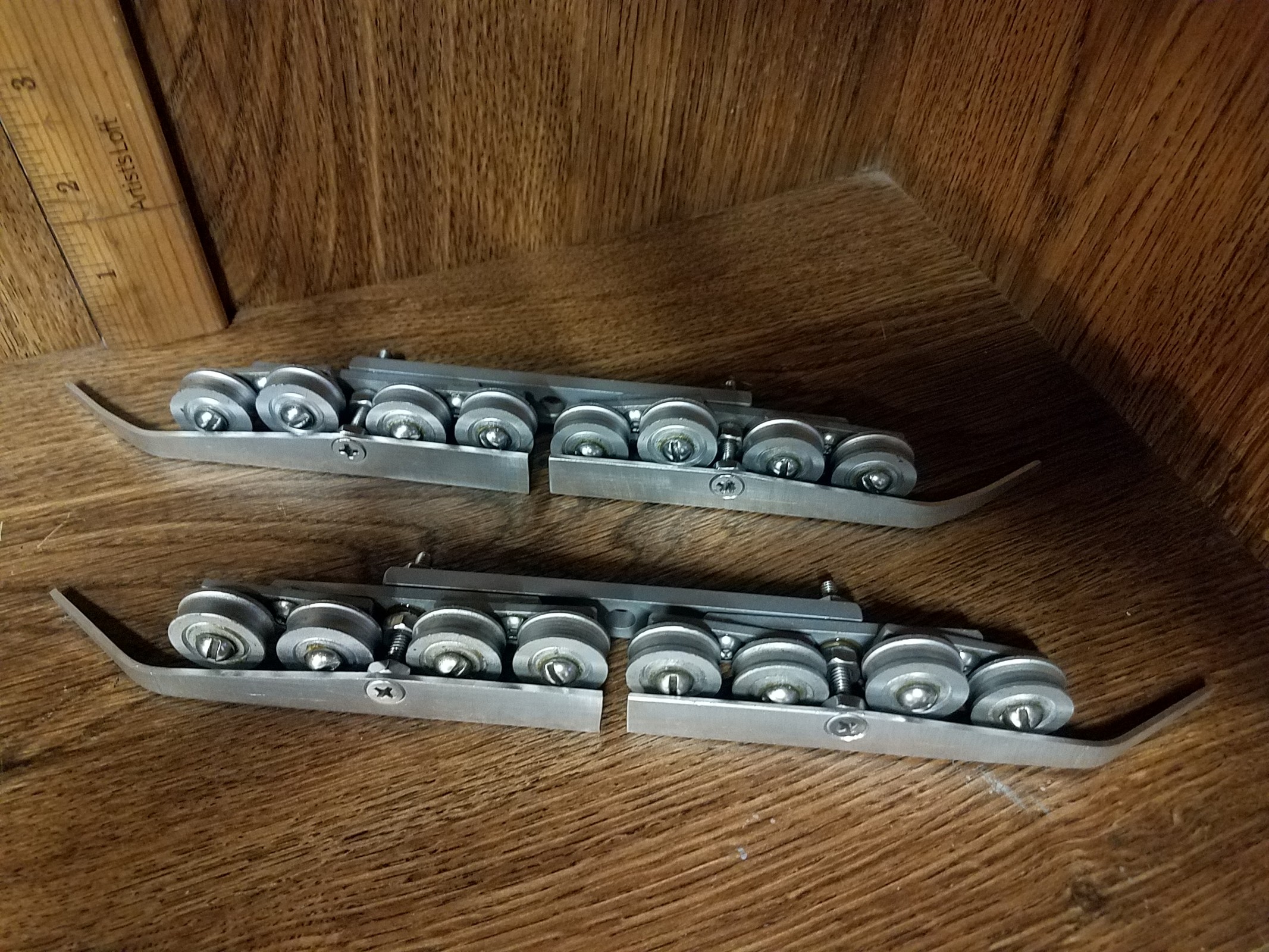

And a balanced 12 sheave tower battery
